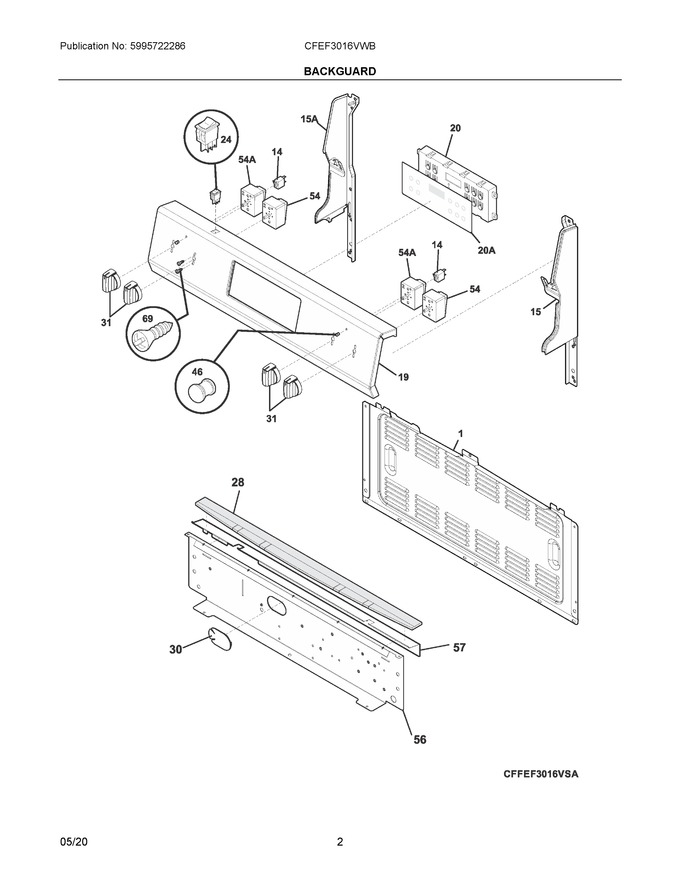

02 - Backguard
03 - Body
04 - Top/drawer
05 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316281802 | Shield, Backguard, Rear Wall |
|
$ 64.04 | |||||
| 14 | 316022500 | Light/lamp, Indicator, Black, 125 V |
|
Immediately | $ 59.52 | ||||
| 15 | 808754505 | Cap, End, White, Rh |
|
$ 68.51 | |||||
| 19 | 5304519438 | Panel, Backguard, White |
|
$ 154.82 | |||||
| 20 | 5304532117 | Controller, Electronic, Es300 (Replaces: 5304508925) |
|
Immediately | $ 138.25 | ||||
| 24 | 5304527842 | Switch, Rocker, White (Replaces: 5304515133) |
|
Immediately | $ 17.92 | ||||
| 28 | 316528700 | Insulation, Manifold Panel |
|
$ 99.23 | |||||
| 30 | 316577600 | Plug, Button, Oval, Harness |
|
$ 16.54 | |||||
| 31 | 5304508957 | Knob, Control, White |
|
Immediately | $ 21.06 | ||||
| 46 | 316557300 | Lens-light/lamp, Indicator, Clear |
|
Immediately | $ 18.63 | ||||
| 54 | 316436000 | Switch, Infinite, Small Element |
|
Immediately | $ 89.27 | ||||
| 56 | 316234029 | Shield, Backguard, White, Inner |
|
$ 96.86 | |||||
| 57 | 808950202 | Shield, Steam |
|
$ 25.99 | |||||
| 69 | 5303288565 | Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg |
|
$ 3.47 | |||||
| 15A | 808754506 | Cap, End, White, Lh |
|
$ 73.31 | |||||
| 20A | 316419144 | Overlay, Clock, White, Es300 |
|
Immediately | $ 59.89 | ||||
| 54A | 316436001 | Switch, Infinite, Large Element |
|
Immediately | $ 57.42 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 30.55 | ||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 30.55 | ||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 14.96 |
