SELECT A DIAGRAM

01 - Cover Sheet


02 - Oven, Cabinet

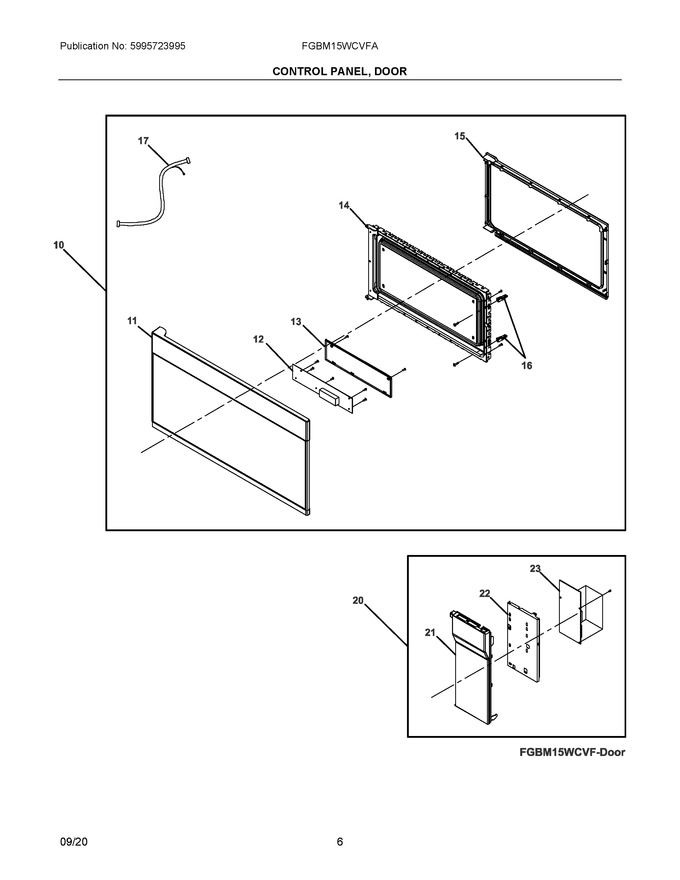

03 - Control Panel, Door


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	5304526225		Door Assembly, Complete, Black/stainless				$ 561.12
11	5304523244		Door Assembly, Outer, Black/stainless		Appelez-nous	-
12	5304523245		Pc Board, Display				$ 282.74
13	5304523246		Cover, Display Board		Appelez-nous	-
14	5304523247		Door Frame, Assembly				$ 169.86
15	5304523248		Gasket, Door				$ 18.21
16	5304523249		Latch, Door				$ 9.74
17	5304523250		Harness, Display Board				$ 57.83
20	5304523251		Control Assembly, Complete, W/pc Board				$ 361.77
21	5304523252		Panel, Control				$ 108.64
22	5304523253		Shield, Control Panel				$ 36.15
23	5304523254		Pc Board, Control/power			Immediately	$ 371.91

    View Diagram in Separate Window       Print Part List
