01 - Cover Sheet

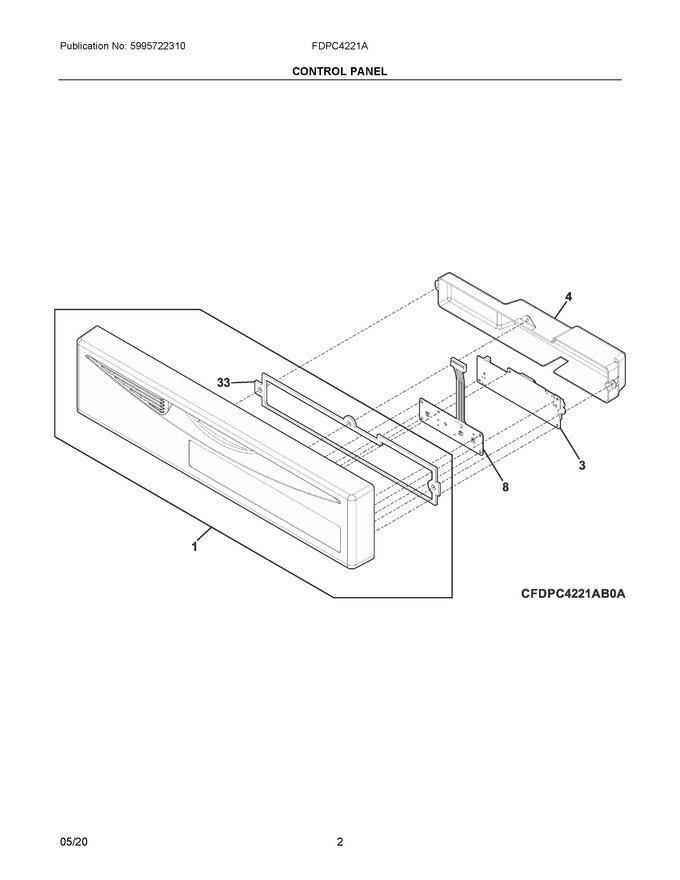

02 - Control Panel
03 - Door
04 - Tub
05 - Motor & Pump
06 - Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304525216 | Control Panel, Assembly, Black, W/overlay-gaskt |
|
Immediately | $ 321.25 | ||||
| 3 | 5304525200 | Pc Board, Control, Gem K4 |
|
Immediately | $ 162.26 | ||||
| 4 | 5304525212 | Cover, Electronics |
|
- | |||||
| 8 | 5304525208 | Pc Board, Tactile Switch |
|
$ 93.99 | |||||
| 33 | 154553501 | Gasket, Cover |
|
$ 47.04 | |||||
| NI | 154294701 | Screw, #7 Plas .375, (6), Disp. Assy. |
|
$ 10.24 | |||||
| NI | 5304525205 | Harness Assembly, Main, W/black Latch, And High Limit, Thermostat |
|
- |
