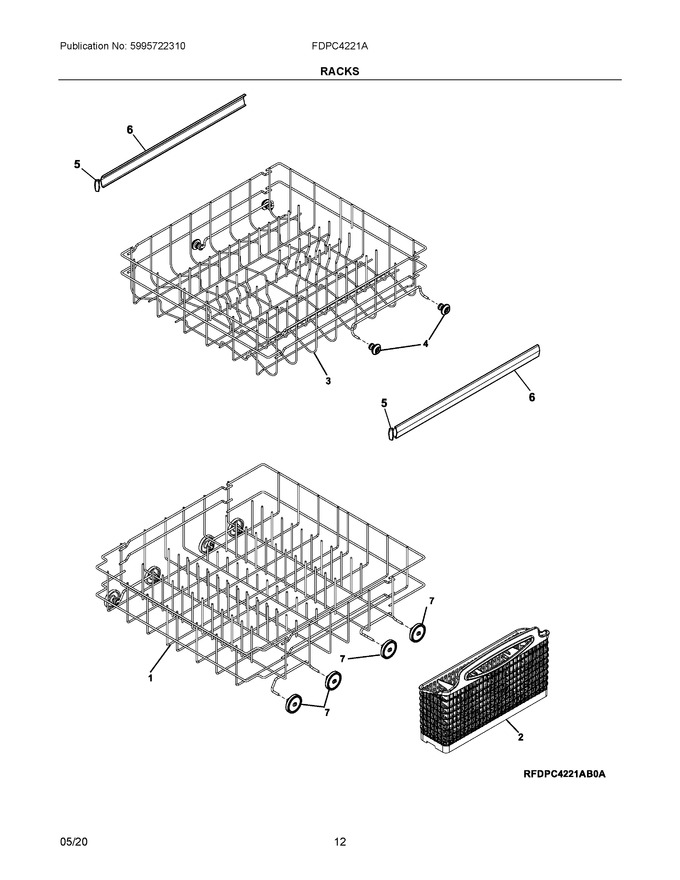

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304535379 | Rack Assembly, Lower, Grey (Replaces: 154331606) |
|
Immediately | $ 138.64 | ||||
| 2 | 5304509753 | Basket, Silverware |
|
Immediately | $ 40.97 | ||||
| 3 | 5304535380 | Rack Assembly, Upper, Grey (Replaces: 5304517201) |
|
Immediately | $ 167.45 | ||||
| 4 | 5304523190 | Wheel & Bushing Assy, Gray, Upper Rack |
|
Immediately | $ 16.38 | ||||
| 5 | 5304506510 | Cap, Rack Slide |
|
Immediately | $ 8.03 | ||||
| 6 | 154597801 | Slide, Rack, Upper, (2) |
|
Immediately | $ 10.40 | ||||
| 7 | 5304521179 | Wheel & Bushing Assy, Lower Rack, (8) |
|
Immediately | $ 18.60 | ||||
| NI | 5304535550 | Nameplate, Rack Spacer, Grey (Replaces: 5304506527) |
|
$ 2.95 |
