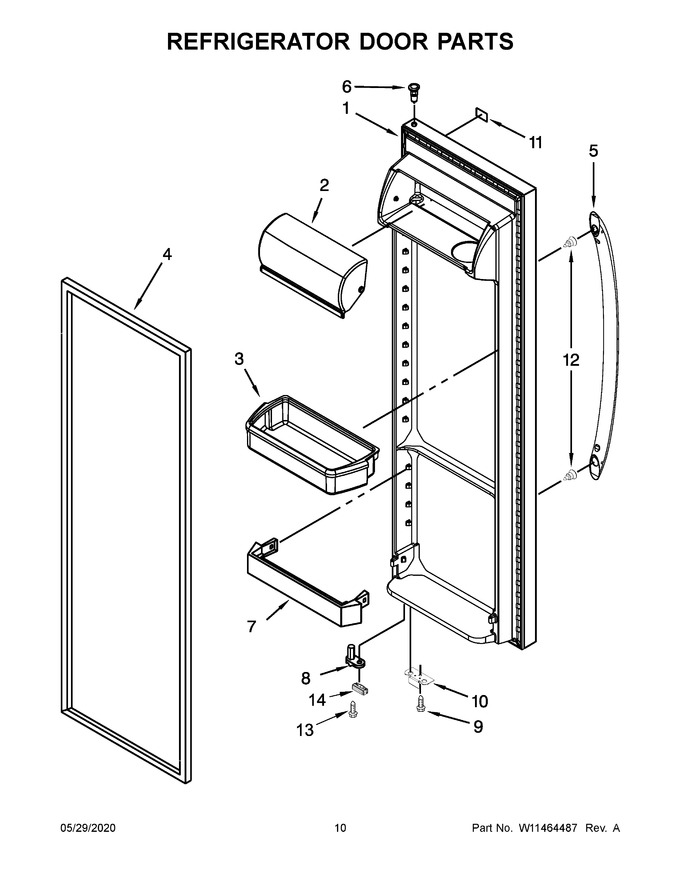

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10912110 | Door, Refrigerator (includes Door Gasket) (stainless) (Replaces: W10912110) |
|
$ 907.99 | |||||
| 2 | WP2256101 | Door, Compartment (Replaces: 2256101) |
|
Immediately | $ 89.42 | ||||
| 3 | W11174793 | Bin, Door (Replaces: W11034658) |
|
$ 161.02 | |||||
| 4 | W10136735 | Gasket, Door (grey) (Replaces: W10912081) |
|
$ 315.51 | |||||
| 5 | W10879677 | Handle (stainless) (Replaces: W10838130) |
|
Immediately | $ 215.42 | ||||
| 6 | WP2182181 | Thimble (Replaces: 2200087) |
|
$ 8.15 | |||||
| 7 | WP2309941 | Trivet (Replaces: 2309941) |
|
Immediately | $ 76.32 | ||||
| 8 | W11397972 | Thimble, Cam (Replaces: W10900464) |
|
$ 13.79 | |||||
| 9 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 8.06 | |||||
| 10 | W11557261 | Bracket, Door Stop (black) (Replaces: W10900463) |
|
Immediately | $ 18.67 | ||||
| 11 | WPW10612926 | Badge (Replaces: W10612926) |
|
Immediately | $ 39.60 | ||||
| 12 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 13 | WPW10308489 | Screw (grey) (Replaces: W10308489) |
|
Immediately | $ 8.18 | ||||
| 14 | W11573367 | Bumper, Door (grey) (Replaces: W10407188) |
|
Immediately | $ 23.35 |
