Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11243818 Energy Guide Appelez-nous -
2 W11806565 Arm, Hinge (left Hand)   (Replaces: 8534854) In-Stock Immediately $ 142.39

3 W10850371 Stiffener, Door   (Replaces: W10803537) In-Stock Immediately $ 32.88

4 W10826179 Screw   (Replaces: W10316572) In-Stock Immediately $ 7.55

5 WPW10526114 Access Panel (black)   (Replaces: W10526114) In-Stock Immediately $ 149.53

6 W10901498 Panel, Front (includes 11, 14 & 16) (black)   (Replaces: W10872620) Special Order $ 417.86

7 W10917698 Set Screw   (Replaces: W10687133) In-Stock Immediately $ 7.55

8 W10831329 Insulation, Four Layer   (Replaces: W10518815) In-Stock Immediately $ 43.30

9 W10708004 Handle Assembly (stainless)   (Replaces: W11325031) In-Stock Immediately $ 141.35

10 W11157086 Stud, Mounting   (Replaces: W11049903) In-Stock Immediately $ 8.87

11 W10901145 Light Pipe   (Replaces: W10854504) Special Order $ 77.23

12 WPW10503548 Fastener (black)   (Replaces: W10503548) In-Stock Immediately $ 30.39

13 WPW10073520 Insulation, Door   (Replaces: W10073520) Special Order $ 96.23

14 W10692757 Barrel Nut, Front Panel Special Order $ 16.01

15 WP3400071 Screw   (Replaces: 3400071) Special Order $ 8.26

16 W10909682 Nameplate   (Replaces: W10518673) In-Stock Immediately $ 76.20

12A WPW10503549 Fastener (white)   (Replaces: W10503549) In-Stock Immediately $ 7.77

1A W11361452 Owners Manual Appelez-nous -
1B W11290942 Tech Sheet Appelez-nous -
2A W11806608 Arm, Hinge (right Hand)   (Replaces: 8534853) In-Stock Immediately $ 142.24

5A WPW10526115 Access Panel (white)   (Replaces: W10526115) Special Order $ 175.17

6A W10872621 Panel, Front (includes 11, 14 & 16) (white) Appelez-nous -
6B W11165143 Panel, Front (includes 11, 14 & 16) (stainless)   (Replaces: W11024139) In-Stock Immediately $ 407.42

6C W10900373 Panel, Front (includes 11, 14 & 16) (black Stainless)   (Replaces: W10872623) In-Stock Immediately $ 433.08


    View Diagram in Separate Window     Print Icon   Print Part List

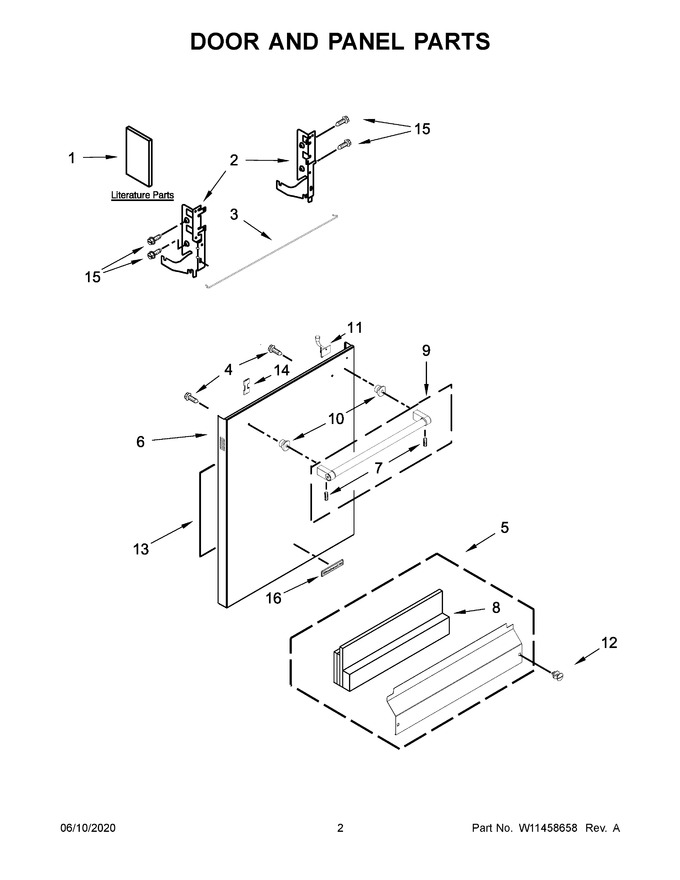

Diagram for KDTE234GPS1
