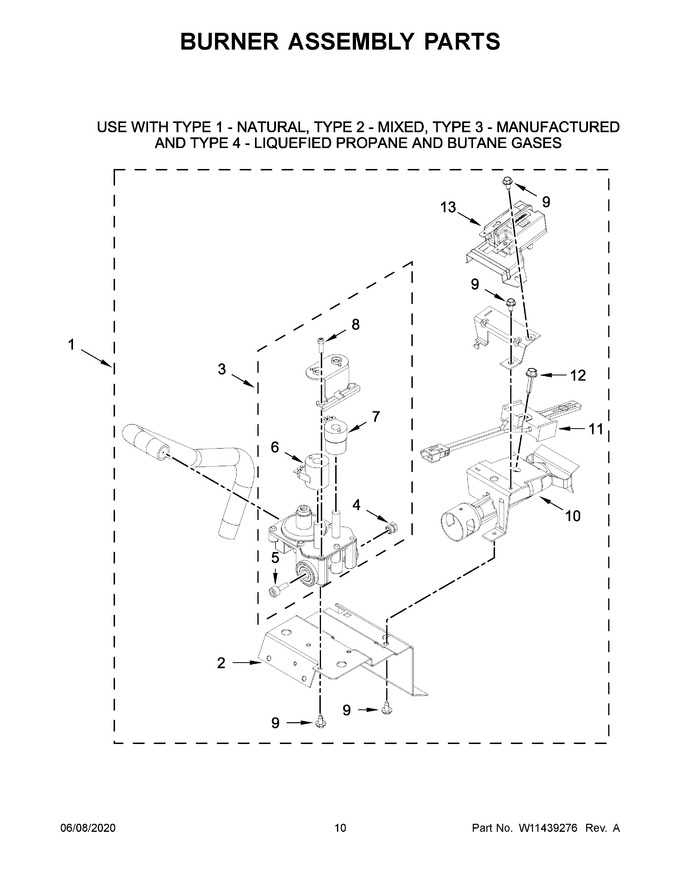

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11714632		Burner Assembly (complete)(60 Hz.)   (Replaces: W11368933)		Appelez-nous	-
2	3391699		Base, Burner		Appelez-nous	-
3	279889		Valve, Gas (60 Hz.)   (Replaces: 8281909)				$ 234.43
4	3394360		Orifice, Burner (natural Gas)		Appelez-nous	-
5	W10295523		Plug, Pipe   (Replaces: 239822)		Appelez-nous	-
6	279834		Coil, 60 Hz (split) (3 Terminal) (pilot Position)   (Replaces: 694539)			Immediately	$ 32.85
7	279834		Coil, 60 Hz. (2 Terminal) (main)   (Replaces: 694540)			Immediately	$ 32.85
8	694421		Screw, Coil		Appelez-nous	-
9	WP693995		Screw   (Replaces: 3387057)			Immediately	$ 7.55
10	8578392		Burner		Appelez-nous	-
11	279311		Ignitor   (Replaces: 686590)			Immediately	$ 78.90
12	WPW10366705		Screw   (Replaces: 3393909)				$ 7.88
13	WP338906		Sensor, Radiant   (Replaces: 338906)			Immediately	$ 51.91
4A	15422		Orifice, Burner (type 4 (propane))				$ 3,441.42
4B	WP3392234		Orifice, Burner (type 4 (butane))   (Replaces: 3392234)				$ 57.08
NI	3392235A		Conversion Kit (type 1 And 2 To Type 4) L.p.g.   (Replaces: 3392235)			Immediately	$ 81.80
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
