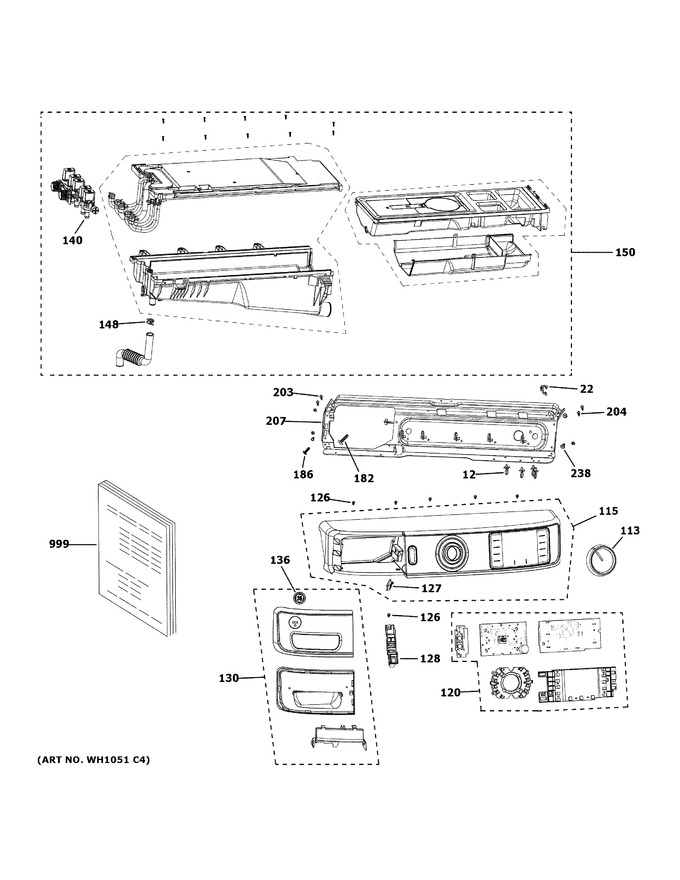

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	WH02X29626		Ground Harness Clamp		Appelez-nous	-
22	WE02X28699		Fixed-line Clip		Appelez-nous	-
113	WH01X30000		Selector Knob		Appelez-nous	-
115	WH22X29526		Control Panel White		Appelez-nous	-
120	WH22X29547		User Interface Board 650		Appelez-nous	-
126	WH02X27219		M Screw		Appelez-nous	-
127	WH01X29669		Rj45 Cover		Appelez-nous	-
128	WH01X29631		Power Button Support		Appelez-nous	-
130	WH01X29686		Dispenser Drawer Handle		Appelez-nous	-
136	WH01X29682		Ge Badge		Appelez-nous	-
140	WH23X29553		Water Valve		Appelez-nous	-
148	WH01X26245		Tub Vent Hose Clamp		Appelez-nous	-
150	WH42X29535		Dispenser Drawer		Appelez-nous	-
182	WE02X26338		Front Panel Screws		Appelez-nous	-
186	WH02X30343		Hinge Base Fastening Screw		Appelez-nous	-
203	WH02X30339		Ground Screw		Appelez-nous	-
204	WH02X26236		Screw M4*10		Appelez-nous	-
207	WH13X29643		Control Bracket		Appelez-nous	-
238	WH02X30370		Shoulder Bolt		Appelez-nous	-
999	31-3000219		Pm Mini Manual And Wiring		Appelez-nous	-
999	49-3000217		Pm Owners And Install		Appelez-nous	-
