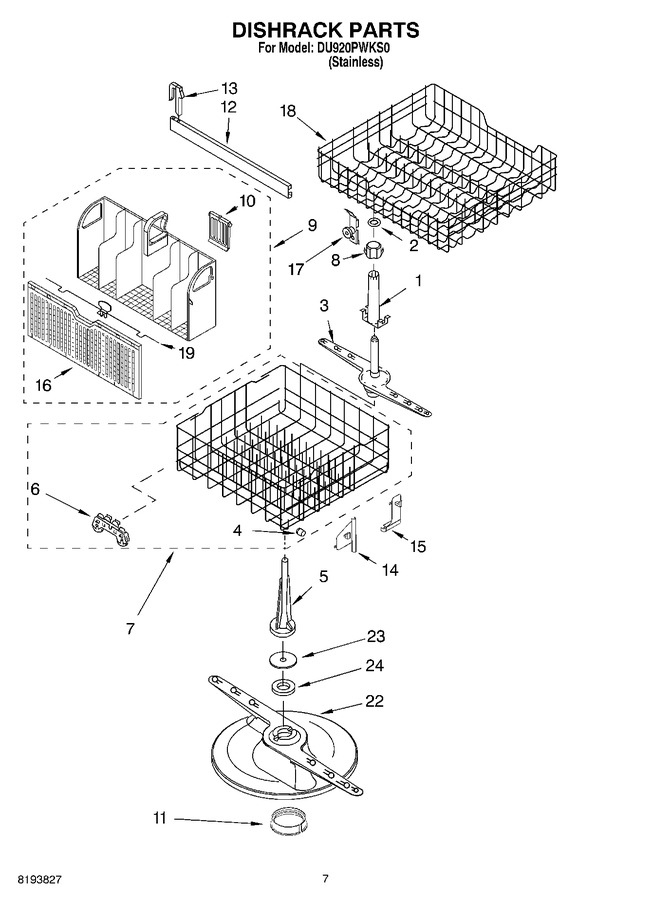

05 - Dishrack Parts
06 - Miscellaneous Parts Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8268838 | Support, Arm (also Order Items 2 & 8) |
|
- | |||||
| 2 | 303722 | Clip |
|
$ 5.75 | |||||
| 3 | 8268829 | Spray Arm, Upper (also Order Item 8) |
|
$ 42.16 | |||||
| 4 | WP3385142 | Bumper (2) (Replaces: 8268863) |
|
$ 94.82 | |||||
| 5 | 8268862 | Tower, Pressure |
|
$ 72.62 | |||||
| 6 | WP8268645 | Wheel & Transport Assembly (4) (Replaces: 8268820) |
|
Immediately | $ 62.31 | ||||
| 7 | W10161215 | Dishrack, Lower (includes Items 4 & 6) (Replaces: 8519578) |
|
$ 198.12 | |||||
| 8 | 8268871 | Support Lock, Spray Arm |
|
$ 5.65 | |||||
| 9 | W11027965 | Basket, Silverware Assembly (Replaces: 8268884) |
|
$ 237.93 | |||||
| 10 | 8268886 | Lid, Silverware Basket |
|
- | |||||
| 11 | WP3376846 | Seal, Lower Sprayarm (Replaces: 3376846) |
|
Immediately | $ 10.12 | ||||
| 12 | WP3385089 | Track (Replaces: 3385089) |
|
Immediately | $ 80.00 | ||||
| 13 | WP8565925 | Stop, Track (4) (Replaces: 8524581) |
|
Immediately | $ 6.87 | ||||
| 14 | 8268867 | Clip, Silverware Basket (left) |
|
$ 44.85 | |||||
| 15 | 8268868 | Clip, Silverware Basket (right) |
|
$ 49.81 | |||||
| 16 | 8519540 | Door, Silverware Basket |
|
- | |||||
| 17 | WPW10204131 | Wheel Assembly (Replaces: 8268848) |
|
Immediately | $ 9.16 | ||||
| 18 | W11169039 | Dishrack, Upper (Replaces: 8519572) |
|
Immediately | $ 203.14 | ||||
| 19 | 8519541 | Latch Assembly |
|
- | |||||
| 22 | WP8268874 | Sprayarm, Lower (Replaces: 8268874) |
|
$ 127.32 | |||||
| 23 | 3367910 | Cap, Nozzle |
|
$ 39.70 | |||||
| 24 | 719576 | Bearing, Nozzle |
|
$ 7.48 |
