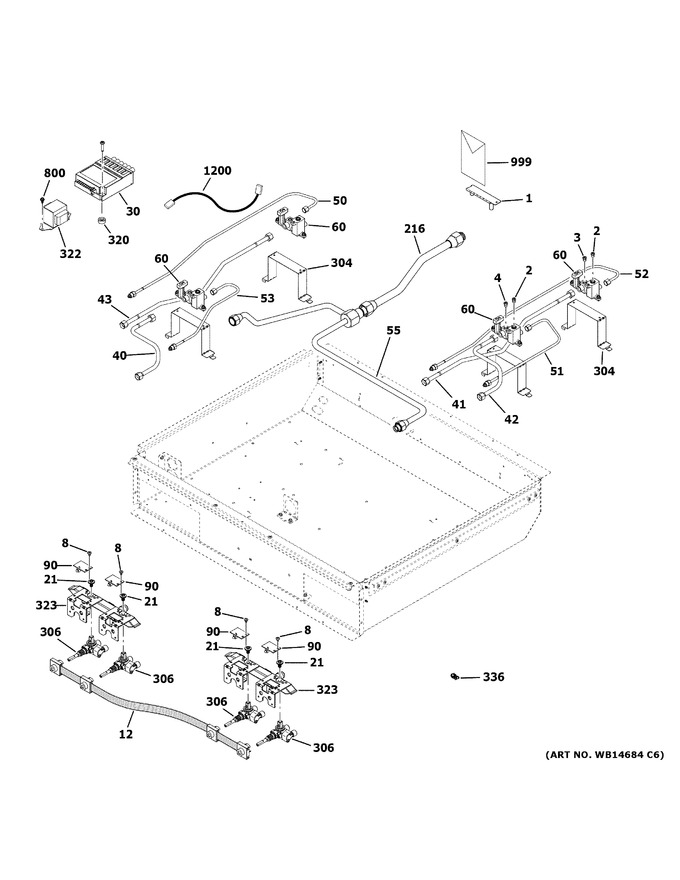

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB28K10541		Lp Conversion Kit		Appelez-nous	-
2	WG02F01183		Orifice Spud (ng Simmer)   (Replaces: WB28T10159)			Immediately	$ 15.88
3	WB28T10157		Orifice Ng Main		Appelez-nous	-
4	WG02F01190		Orifice Spud (ng Main)   (Replaces: WB28T10155)				$ 15.88
8	WS01A01212		Screw 8-32   (Replaces: WB01K10002)				$ 88.13
12	WB18X31494		Harness Burner Box		Appelez-nous	-
21	WB01K10067		Scr 8 Hd 1/4 - 20		Appelez-nous	-
30	WB13X27483		Module Spark		Appelez-nous	-
40	WB28K10492		Tube And Nut Asm		Appelez-nous	-
41	WB28K10493		Tube And Nut Asm		Appelez-nous	-
42	WB28K10494		Tube And Nut Asm		Appelez-nous	-
43	WB28K10495		Tube And Nut Asm		Appelez-nous	-
50	WB28K10496		Tube And Nut Asm		Appelez-nous	-
51	WB28K10497		Tube And Nut Asm		Appelez-nous	-
52	WB28K10498		Tube And Nut Asm		Appelez-nous	-
53	WB28K10499		Tube And Nut Asm		Appelez-nous	-
55	WB28K10551		Tee Swaged Asm		Appelez-nous	-
60	WB28T10114		Burner Injet		Appelez-nous	-
90	WS01F01723		Led Asm   (Replaces: WB25K10012)				$ 97.21
216	WB28K10537		Tube Regulator Asm		Appelez-nous	-
304	WB02K10192		Bracket Injet		Appelez-nous	-
306	WB21K10162		Valve Dual		Appelez-nous	-
320	WB1K10		Grommet Handle		Appelez-nous	-
322	WS01F02728		Transformer   (Replaces: WB27K10298)				$ 188.64
323	WB28K10536		Pipe Manifold Asm		Appelez-nous	-
336	WB2X7066		Clip Wire		Appelez-nous	-
800	WB01K10042		Scr 8-18 Ab Ihw 3/8 Sn		Appelez-nous	-
999	49-2000572		Pm Insert Instructions		Appelez-nous	-
999	31-11126		Pm Install Instructions		Appelez-nous	-
999	31-17281		Pm Manual Mini & Wd Asm		Appelez-nous	-
999	WG02A00297		Lubricant Cleaner   (Replaces: WB02T10303)				$ 77.35
1200	WB18K10052		Harness Hv		Appelez-nous	-
