Room Air Conditioner
New Model Search:

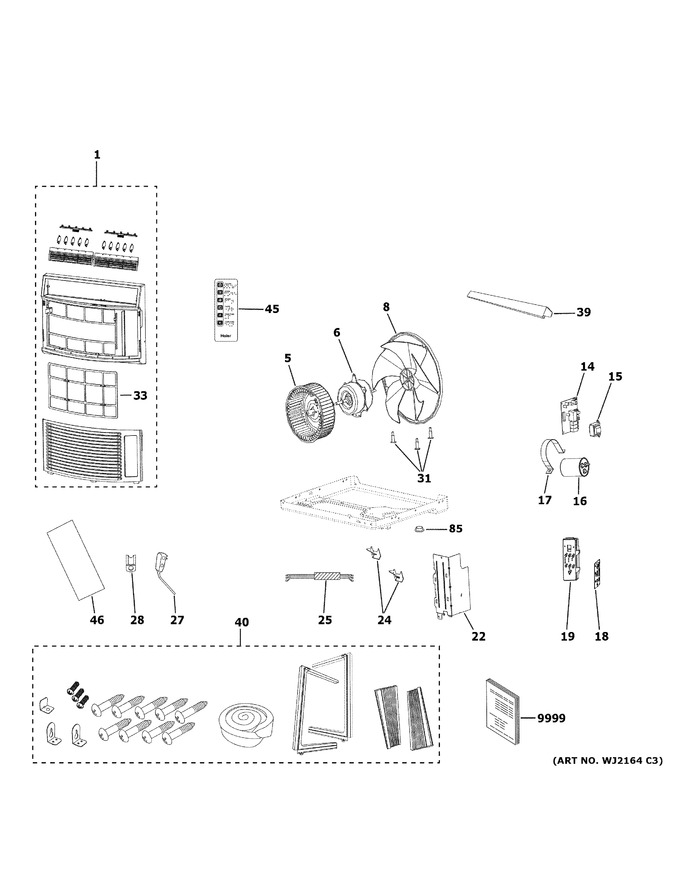

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WJ71X22407 | Front Panel Asm |
|
- | |||||
| 5 | WJ76X22150 | Indoor Fan Blade |
|
- | |||||
| 6 | WJ94X22406 | Fan Motor |
|
- | |||||
| 8 | WJ73X20380 | Axial Fan |
|
- | |||||
| 14 | WJ29X20075 | Control Board |
|
- | |||||
| 15 | WJ27X20099 | Transformer |
|
- | |||||
| 16 | WJ20X20068 | Capacitor |
|
- | |||||
| 17 | WJ03X10093 | Clamp, Capacitor |
|
- | |||||
| 18 | WJ26X22187 | Display Board |
|
- | |||||
| 19 | WJ76X22405 | Control Panel |
|
- | |||||
| 22 | WJ05X20092 | Protective Plate |
|
- | |||||
| 24 | WJ66X10101 | Bracket Guide |
|
- | |||||
| 25 | WJ36X20102 | Wire Harness |
|
- | |||||
| 27 | WJ35X22193 | Power Cord |
|
- | |||||
| 28 | WJ01X22194 | Strain Relief |
|
- | |||||
| 31 | WJ01X22140 | Bolt |
|
- | |||||
| 33 | WJ85X21745 | Filter |
|
$ 12.36 | |||||
| 39 | WG01A01092 | Top Rail (Replaces: WJ86X21742) |
|
Immediately | $ 23.82 | ||||
| 40 | WJ01X21741 | Installation Asm |
|
- | |||||
| 45 | WJ26X22103 | Remote Control |
|
- | |||||
| 46 | WJ43X22408 | Evaporator Side Plate |
|
- | |||||
| 85 | WJ05X20122 | Plug |
|
- | |||||
| 9999 | 31-30830 | Pm Mini Manual |
|
- | |||||
| 9999 | 49-7764 | Pm Use And Care Manual |
|
- |
