SELECT A DIAGRAM

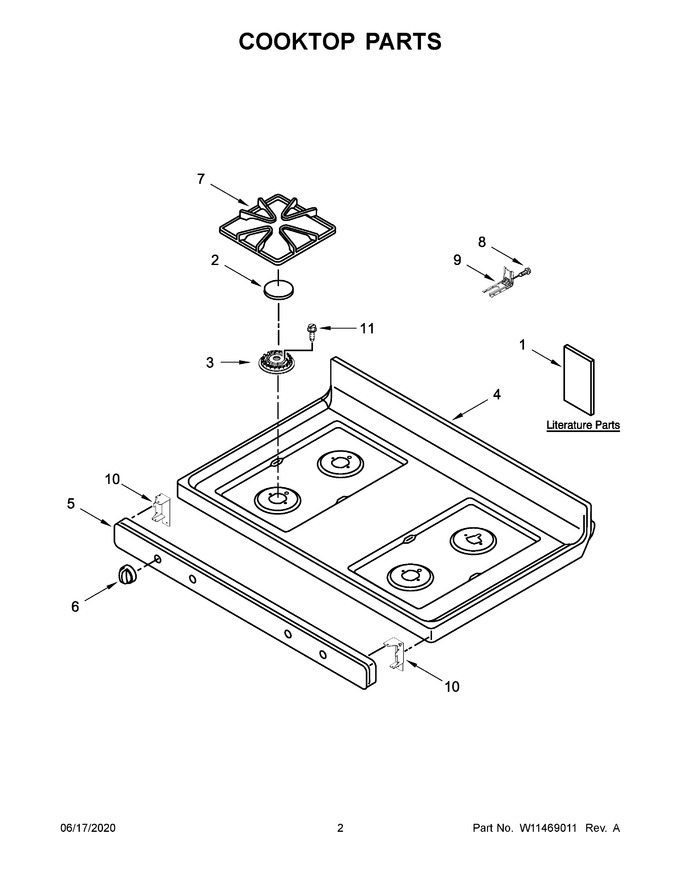

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts


04 - Manifold Parts


05 - Chassis Parts


06 - Door Parts


07 - Drawer And Broiler Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11404103		Installation Instructions		Appelez-nous	-
2	W11455147		Set, Burner Cap (black (set Of 4))   (Replaces: W11395131)				$ 99.73
3	W11435630		Spreader, Flame (left Front, Right Front)   (Replaces: W11352018)			Immediately	$ 82.12
4	W11475519		Cooktop (black)   (Replaces: W11418038)		Appelez-nous	-
5	8523855		Panel, Manifold (black)				$ 176.18
6	W11164105		Knob, Control (stainless)   (Replaces: W10844796)			Immediately	$ 80.44
7	W10915784		Grate Kit (black (set Of 4))   (Replaces: W10682667)				$ 363.14
8	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 30.72
9	W11839019		Anti-tip Bracket   (Replaces: W11379945)			Immediately	$ 28.54
10	8523249		Bracket, Manifold		Appelez-nous	-
11	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 14.73
1A	W11404080		Use & Care Guide		Appelez-nous	-
1B	W10873899		Tech Sheet		Appelez-nous	-
1C	W10873901		Wiring Diagram		Appelez-nous	-
3A	W11435659		Spreader, Flame (left Rear)   (Replaces: W11352020)				$ 84.85
3B	W11435657		Spreader, Flame (right Rear)   (Replaces: W11352021)				$ 84.43
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10842520		Harness, Main		Appelez-nous	-
NI	W11161843		Harness, Bake/broil   (Replaces: W10753750)				$ 216.55
NI	3196896		Clip, Wire		Appelez-nous	-
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
NI	W10334923		Clip, Gas Wiring		Appelez-nous	-
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	W11244557		Screw (grounding)   (Replaces: 3196173)				$ 14.29
NI	W10841090		Clamp, Wire   (Replaces: 7111P017-60)		Appelez-nous	-
