SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Shelf Parts


05 - Freezer Liner Parts

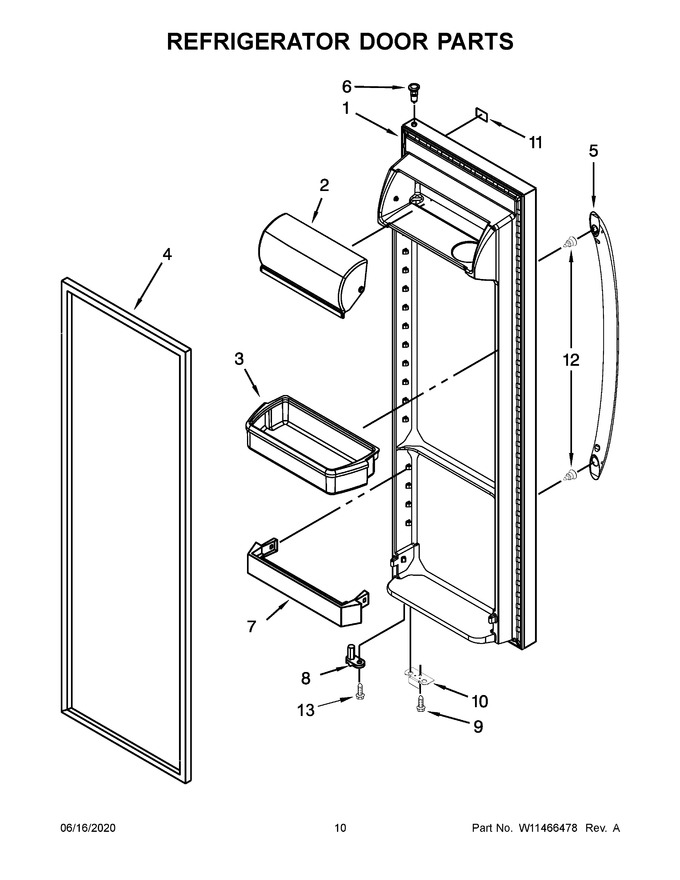

06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Air Flow Parts


09 - Unit Parts


10 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10912118		Door, Refrigerator (includes Door Gasket) (white)   (Replaces: W10912118)				$ 780.50
2	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 80.48
3	WPW10269173		Door Bin, Shallow   (Replaces: W10269173)				$ 63.69
4	2159074		Gasket, Door (beige)   (Replaces: W10912123)				$ 293.13
5	W11432251		Handle (white)   (Replaces: W11289637)				$ 170.75
6	WP2182181		Thimble   (Replaces: 2200087)				$ 7.34
7	WP2309941		Trivet   (Replaces: 2309941)			Immediately	$ 70.65
8	W11397972		Thimble, Cam   (Replaces: W10900464)				$ 12.41
9	WP489483		Screw   (Replaces: 489420)				$ 10.27
10	W11557261		Bracket, Door Stop (black)   (Replaces: W10900463)			Immediately	$ 16.80
11	W11223753		Badge   (Replaces: W10884773)			Immediately	$ 78.53
12	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 11.59
13	WPW10142283		Screw (white)   (Replaces: W10142283)				$ 9.30
1A	LW11110269		Door, Refrigerator (includes Door Gasket) (stainless)   (Replaces: W11110269)		Appelez-nous	-
4A	W10136735		Gasket, Door (grey)   (Replaces: W10912081)				$ 298.16
5A	W11163764		Handle (stainless)   (Replaces: W11045530)			Immediately	$ 164.98
