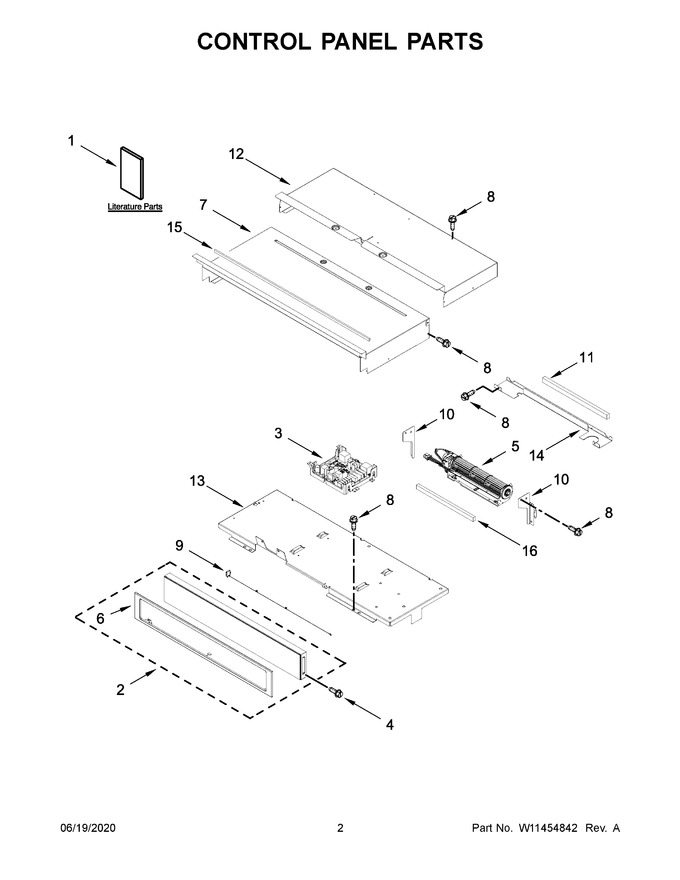

02 - Control Panel Parts
03 - Oven Parts
04 - Oven Door Parts
05 - Internal Oven Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11129956 | Instructions, Installation |
|
- | |||||
| 2 | W11293216 | Assembly, Control Panel (includes Overlay) (black) (Replaces: W11105005) |
|
Immediately | $ 768.20 | ||||
| 3 | W11261167 | Appliance Manager, Copernicus (Replaces: W11253187) |
|
Immediately | $ 472.23 | ||||
| 4 | WPY706189 | Screw (Replaces: W11249635) |
|
Immediately | $ 7.55 | ||||
| 5 | W11248652 | Blower (Replaces: W11200129) |
|
Immediately | $ 241.54 | ||||
| 6 | W11026970 | Skin, Control Panel (black) |
|
- | |||||
| 7 | W10318192 | Chassis, Cover Top Front 30 |
|
$ 138.81 | |||||
| 8 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 9 | W11537624 | Antenna (Replaces: W11234541) |
|
$ 106.06 | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10728475 | Gasket, Rubber |
|
$ 38.13 | |||||
| 12 | W10904156 | Chassis, Cover Top Back 30 |
|
- | |||||
| 13 | W10864102 | Tray, Electronic |
|
$ 67.13 | |||||
| 14 | W10655465 | Chassis, Back Divider |
|
- | |||||
| 15 | W11226314 | Gasket, Rubber (Replaces: W11162063) |
|
- | |||||
| 16 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 8.14 | ||||
| 10A | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 1A | W11097840 | Instructions, Undercounter Installation |
|
- | |||||
| 1B | W11220321 | Guide, Use & Care |
|
- | |||||
| 1C | W11097305 | Guide, Internet Connectivity |
|
- | |||||
| 1D | W11129945 | Sheet, Tech |
|
- | |||||
| 1E | W11129948 | Diagram, Wiring |
|
- | |||||
| 2A | W11296169 | Assembly, Control Panel (includes Overlay) (white) (Replaces: W11105009) |
|
$ 834.53 | |||||
| 2B | W11296171 | Assembly, Control Panel (includes Overlay) (stainless) (Replaces: W11105004) |
|
$ 833.76 | |||||
| 6A | W11109371 | Skin, Control Panel (white) (Replaces: W11026969) |
|
- | |||||
| 6B | W11113207 | Skin, Control Panel (stainless) (Replaces: W10899877) |
|
Immediately | $ 240.74 | ||||
| NI | 4450800 | Screw, Grounding |
|
$ 13.47 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11225360 | Harness, Main |
|
$ 242.81 | |||||
| NI | W11132989 | Harness, Door Latch |
|
$ 118.98 | |||||
| NI | W11225363 | Harness, Signal |
|
$ 117.97 | |||||
| NI | W11233570 | Harness, Console |
|
Immediately | $ 234.66 | ||||
| NI | W11699910 | Harness, Eol (Replaces: W10562910) |
|
$ 32.95 | |||||
| NI | 4448664 | Clamp, Conduit |
|
$ 21.41 | |||||
| NI | W10655464 | Bracket, Harness |
|
$ 40.71 | |||||
| NI | W10487999 | Clip, Harness |
|
$ 21.12 |
