SELECT A DIAGRAM

01 - Cover Sheet

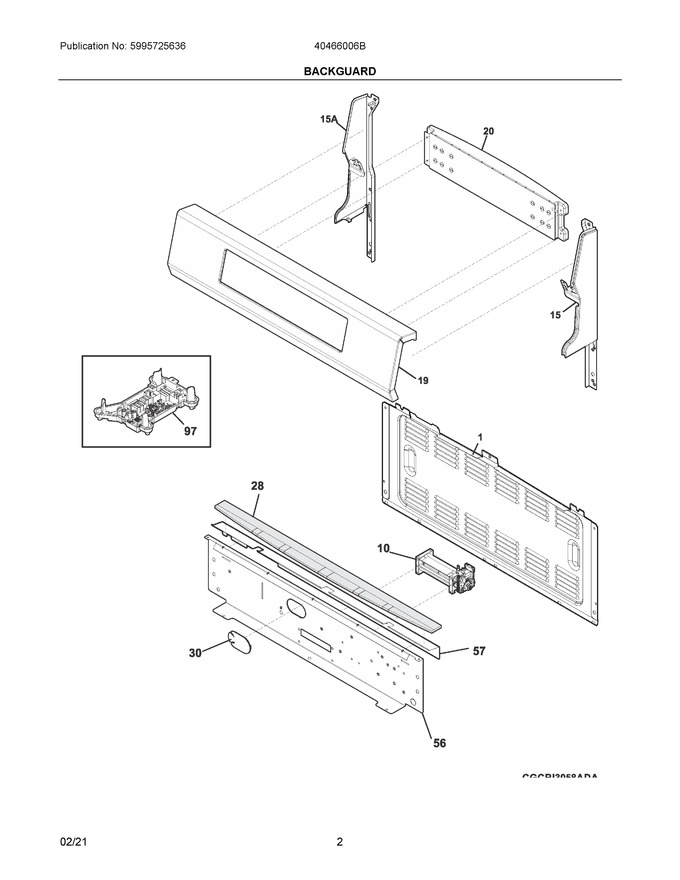

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield, Backguard, Rear Wall				$ 64.04
2	5304521812		Generator Board, Power, Induction			Immediately	$ 375.36
10	5304511092		Fan Assembly, Blower, Condensation			Immediately	$ 292.39
15	5304493644		Cap, End, Black, Rh				$ 74.15
19	5304524904		Panel, Control, Stainless, Backguard, W/clck Brackets				$ 234.36
20	5304524987		Control, W/overlay, Black, Es503i				$ 401.09
28	316528701		Insulation, Manifold Panel		Appelez-nous	-
30	316577600		Plug, Button, Oval, Harness				$ 16.54
56	316234048		Shield, Backguard, White, Inner		Appelez-nous	-
57	808950203		Shield, Steam				$ 14.32
97	5304516862		Board, Pc, Oven Relay			Immediately	$ 367.41
15A	5304493646		Cap, End, Black, Lh			Immediately	$ 74.15
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	5304522699		Harness, Communication				$ 33.71
NI	5304519440		Harness, Wiring, Induction, W/ferrite Core				$ 39.61
NI	316089500		Screw, 10-16 X .486				$ 14.96
NI	5304522701		Harness, Low Voltage				$ 54.77
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NIA	318165800		Spacer, Glass, Foam				$ 19.69

    View Diagram in Separate Window       Print Part List
