SELECT A DIAGRAM

01 - Cover Sheet

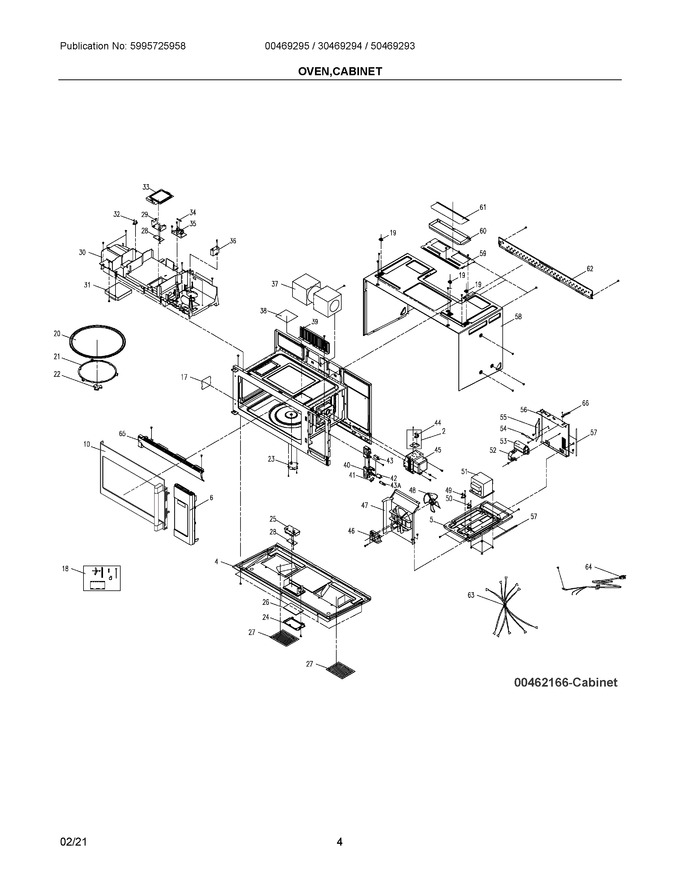

02 - Oven,cabinet


03 - Control Panel,door


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5304515183		Thermostat, Assembly, W/bracket			Immediately	$ 32.88
4	5304509417		Base, Unit Chassis				$ 232.94
5	5304509418		Base, Transformer		Appelez-nous	-
6	5304525306		Control Assembly, White		Appelez-nous	-
10	5304525293		Door Assembly, White				$ 280.34
17	5304509435		Cover, Waveguide				$ 15.27
18	5304513469		Mounting Kit, W/templates			Immediately	$ 69.31
19	5304509436		Mounting Nut Kit			Immediately	$ 16.34
20	5304525313		Tray, Turntable				$ 145.76
21	5304509438		Support, Turntable Ring				$ 58.00
22	5304509439		Coupler, Turntable/motor				$ 15.27
23	5304521583		Motor, Turntable			Immediately	$ 95.37
24	5304525310		Frame, Lens Holder		Appelez-nous	-
25	5304509442		Cover, Lamp				$ 65.66
26	5304509443		Lens, Cooktop Lamp, Glass		Appelez-nous	-
27	5304517871		Filter, Grease			Immediately	$ 29.90
28	5304517872		Lamp, Led			Immediately	$ 49.16
29	5304509446		Bracket, Led				$ 24.53
30	5304509447		Duct, Air		Appelez-nous	-
31	5304509448		Vent, Air Outlet		Appelez-nous	-
32	5304515178		Thermostat, Cutout, Oven Cavity			Immediately	$ 31.70
33	5304509450		Cover, Lamp, Oven Cavity				$ 20.69
34	5304509451		Fuse			Immediately	$ 14.45
35	5304525109		Filter, Noise, Electronic				$ 95.55
36	5304509453		Capacitor, Start				$ 141.75
37	5304525312		Motor, Vent				$ 305.13
38	5304509455		Tape, Lamp		Appelez-nous	-
39	5304509456		Cover, Control Shield, Right				$ 21.69
40	5304509457		Latch Hook			Immediately	$ 48.65
41	5304509458		Lever, Switch			Immediately	$ 11.30
42	5304512529		Switch, Monitor			Immediately	$ 42.18
43	5304509460		Switch, Interlock, Primary			Immediately	$ 50.30
44	5304513461		Thermostat, 160/95 *v			Immediately	$ 29.94
45	5304509470		Magnetron, High Voltage			Immediately	$ 484.63
46	5304509471		Motor, Cooling Fan				$ 167.13
47	5304509472		Duct, Cooling Fan				$ 88.36
48	5304509473		Fan Blade, Cooling Fan				$ 17.19
49	5304513462		Thermostat, 120/0 *v			Immediately	$ 28.38
50	5304513463		Thermostat, 70/40 *v				$ 29.99
51	5304515184		Transformer, Power, Hv			Immediately	$ 470.01
52	5304509477		Retainer, Capacitor Strap		Appelez-nous	-
53	5304509478		Capacitor, High Voltage			Immediately	$ 170.93
54	5304515185		Diode, High Voltage			Immediately	$ 28.70
55	5304509480		Vent, Air, Magnetron				$ 64.05
56	5304509481		Plate, Air Guide		Appelez-nous	-
57	5304525314		Cushion, Foam Pad		Appelez-nous	-
58	5304509632		Cabinet, Outer Casing, White				$ 244.13
59	5304509484		Cover, Vent Motor				$ 156.40
60	5304509485		Adapter, Exhaust, Damper Frame			Immediately	$ 28.13
61	5304509486		Damper, Door, Exhaust Adapter			Immediately	$ 30.81
62	5304509487		Plate, Wall Mounting, Rear			Immediately	$ 66.25
63	5304512500		Harness, Wiring, Main				$ 122.85
64	5304525311		Power Cord, Electric		Appelez-nous	-
65	5304523978		Vent, Black, Front				$ 80.12
66	5304509491		Spacer		Appelez-nous	-
43A	5304515182		Switch, Interlock, Secondary			Immediately	$ 38.71

    View Diagram in Separate Window       Print Part List
