01 - Cover Sheet
02 - Oven Parts

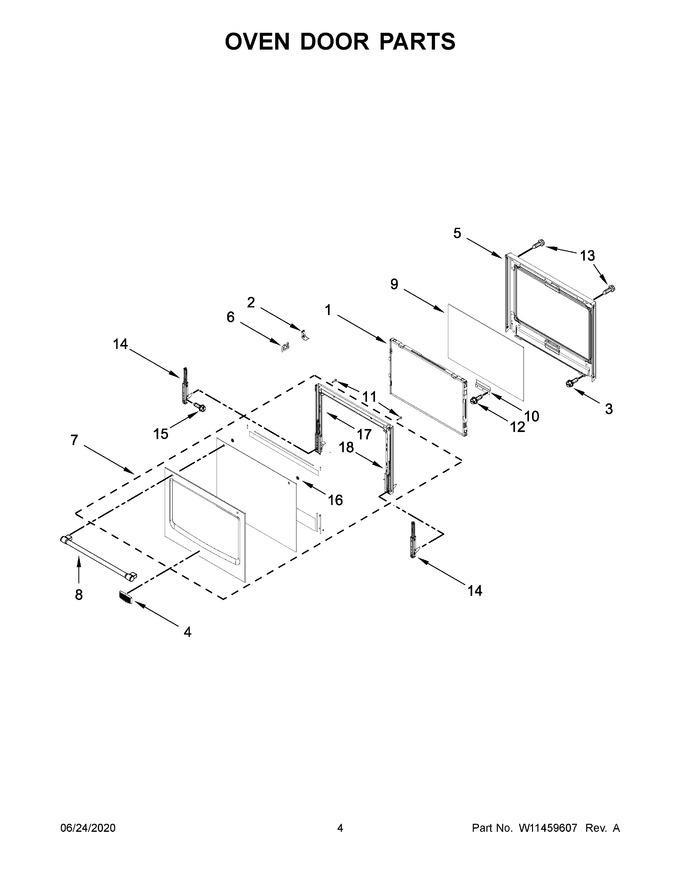

03 - Oven Door Parts
04 - Internal Oven Parts
05 - Control Panel Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11458357 | Assembly, Window Pack (Replaces: W11383650) |
|
$ 337.04 | |||||
| 2 | W10812024 | Spring, Door Glass Fixation (Replaces: W10284285) |
|
$ 165.76 | |||||
| 3 | W10828565 | Screw (black) (Replaces: 7101P635-60) |
|
$ 7.85 | |||||
| 4 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 42.36 | ||||
| 5 | WPW10320793 | Assembly, Liner (Replaces: W10320793) |
|
$ 337.34 | |||||
| 6 | W11025615 | Clip, Spring Metal (Replaces: W10653954) |
|
Immediately | $ 176.14 | ||||
| 7 | W10915337 | Assembly, Door Glass (stainless) (Replaces: W11318330) |
|
$ 796.72 | |||||
| 8 | W10915198 | Assembly, Door Handle (stainless) (Replaces: W10834519) |
|
- | |||||
| 9 | W11458359 | Glass, Inner (Replaces: W11368483) |
|
Immediately | $ 319.55 | ||||
| 10 | W10853628 | Bracket, Glass (Replaces: W10284297) |
|
$ 163.86 | |||||
| 11 | W10831019 | Screw (Replaces: W10480830) |
|
Immediately | $ 8.27 | ||||
| 12 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 13 | WPY706189 | Screw (Replaces: 7101P427-60) |
|
Immediately | $ 7.55 | ||||
| 14 | W11578949 | Hinge, Door (Replaces: W10639071) |
|
$ 80.56 | |||||
| 15 | WP3196183 | Screw (Replaces: 3196183) |
|
Immediately | $ 8.18 | ||||
| 16 | W11676355 | Washer, Door (Replaces: W10319024) |
|
Immediately | $ 14.81 | ||||
| 17 | W11355410 | Rail, Door Side (left) |
|
- | |||||
| 18 | W11355411 | Rail, Door Side (right) |
|
- |
