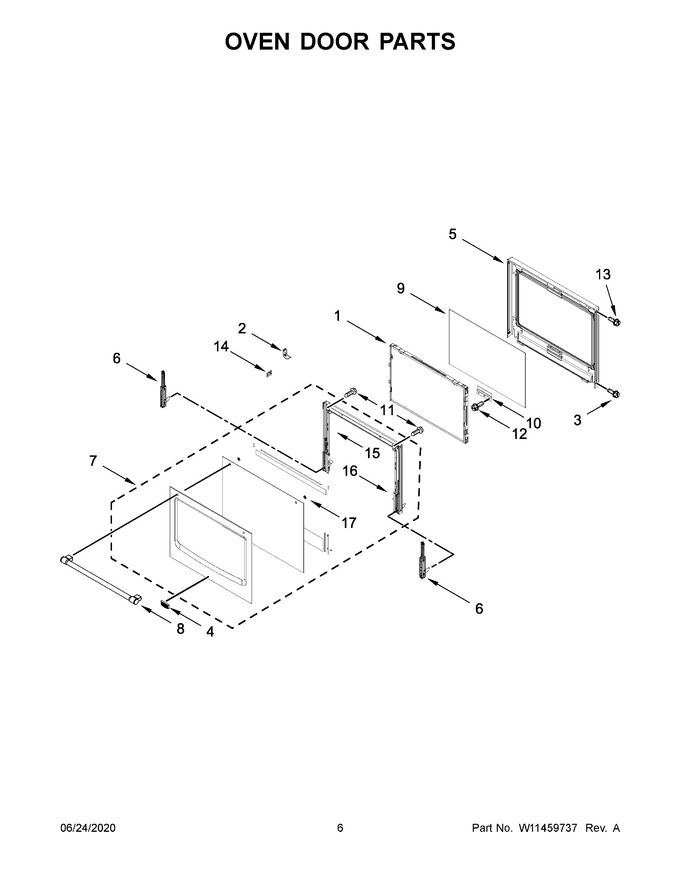

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel Parts
03 - Oven Parts
04 - Oven Door Parts
05 - Internal Oven Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11455086 | Assembly, Window Pack (Replaces: W11383648) |
|
$ 337.26 | |||||
| 2 | W10812024 | Spring, Door Glass Fixation (Replaces: W10284285) |
|
$ 165.76 | |||||
| 3 | WP3196183 | Screw (Replaces: 3196183) |
|
Immediately | $ 8.18 | ||||
| 4 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 42.36 | ||||
| 5 | WPW10709147 | Assembly, Liner (Replaces: W10709147) |
|
$ 366.69 | |||||
| 6 | W11642291 | Hinge, Door (Replaces: W10639067) |
|
$ 83.24 | |||||
| 7 | W10914777 | Assembly, Door Glass (stainless) (Replaces: W11318333) |
|
$ 813.68 | |||||
| 8 | W10912640 | Handle, Door (stainless) (Replaces: W10834521) |
|
$ 227.35 | |||||
| 9 | W11455100 | Glass, Inner (Replaces: W11368485) |
|
$ 195.37 | |||||
| 10 | W10853628 | Bracket, Glass (Replaces: W10284297) |
|
$ 163.86 | |||||
| 11 | W10831019 | Screw (Replaces: W10480830) |
|
Immediately | $ 8.27 | ||||
| 12 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 13 | W10828565 | Screw (black) (Replaces: 7101P635-60) |
|
$ 7.85 | |||||
| 14 | W11025615 | Clip, Spring Metal (Replaces: W10653954) |
|
Immediately | $ 176.14 | ||||
| 15 | W11355410 | Rail, Door Side (left) |
|
- | |||||
| 16 | W11355411 | Rail, Door Side (right) |
|
- | |||||
| 17 | W11676355 | Washer, Door (Replaces: W10319024) |
|
Immediately | $ 14.81 |
