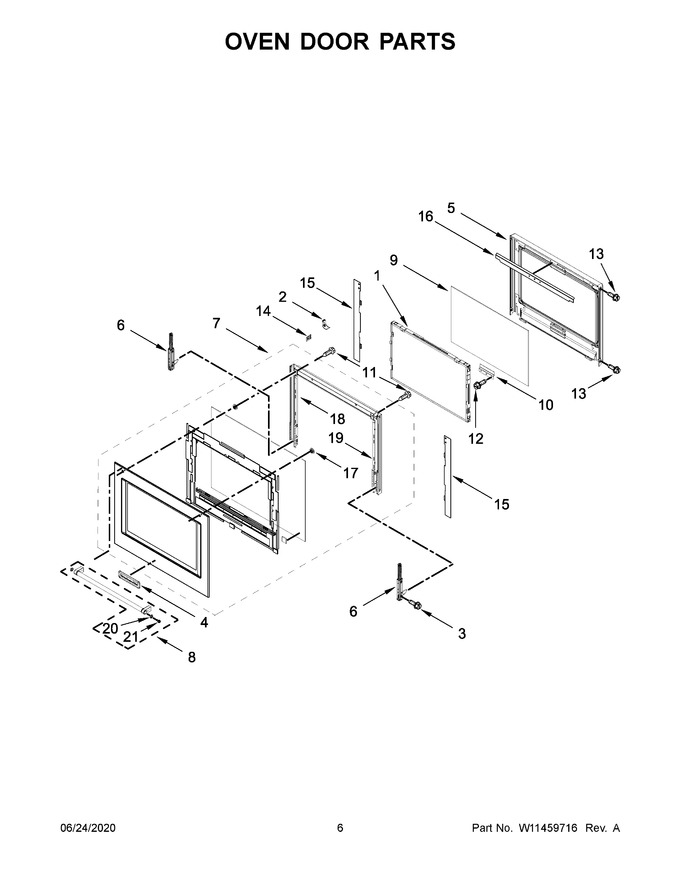

01 - Cover Sheet


02 - Control Panel Parts


03 - Oven Parts


04 - Oven Door Parts


05 - Internal Oven Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11455086		Assembly, Window Pack   (Replaces: W11383648)				$ 337.26
2	W10812024		Spring, Door Glass Fixation   (Replaces: W10284285)				$ 165.76
3	WP3196183		Screw   (Replaces: 3196183)			Immediately	$ 8.18
4	W10909682		Badge   (Replaces: W10518672)			Immediately	$ 76.20
5	WPW10709147		Assembly, Liner   (Replaces: W10709147)				$ 366.69
6	W11642291		Hinge, Door   (Replaces: W10639067)				$ 83.24
7	W11354870		Assembly, Door (stainless)   (Replaces: W11318279)			Immediately	$ 963.14
8	W11518518		Assembly, Handle (stainless)   (Replaces: W10541913)				$ 231.75
9	W11455100		Glass, Inner   (Replaces: W11368485)				$ 195.37
10	W10853628		Bracket, Glass   (Replaces: W10284297)				$ 163.86
11	W10831019		Screw   (Replaces: W10480830)			Immediately	$ 8.27
12	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
13	W10828565		Screw (black)   (Replaces: 7101P635-60)				$ 7.85
14	W11025615		Clip, Spring Metal   (Replaces: W10653954)			Immediately	$ 176.14
15	W10687815		Extension, Side Rail (left)				$ 71.68
16	W10669415		Shield, Door Liner				$ 69.55
17	W11676355		Washer, Door   (Replaces: W10319024)			Immediately	$ 14.81
18	W11355410		Rail, Door Side (left)		Appelez-nous	-
19	W11355411		Rail, Door Side (right)		Appelez-nous	-
20	W10846207		Medallion, Handle   (Replaces: W10551026)			Immediately	$ 23.14
21	W10920281		Screw   (Replaces: W10656499)			Immediately	$ 8.95
15A	W10687814		Extension, Side Rail (right)				$ 71.68
