01 - Cover Sheet
02 - Control Panel Parts
03 - Oven Parts
04 - Oven Door Parts

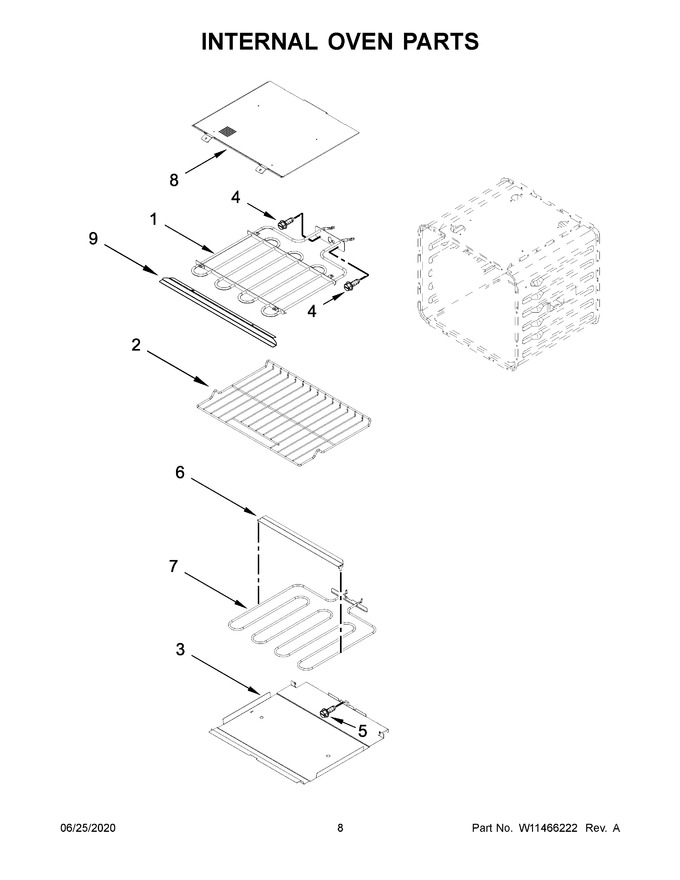

05 - Internal Oven Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10804429 | Element, Broil (Replaces: W10764078) |
|
Immediately | $ 152.91 | ||||
| 2 | WPW10554529 | Rack, Oven (Replaces: W10554529) |
|
$ 173.24 | |||||
| 3 | W10318198 | Tray, Hidden Bake |
|
$ 195.83 | |||||
| 4 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 7.30 | |||||
| 5 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 6 | W10282957 | Crossbar, Hidden Bake Tray |
|
$ 47.47 | |||||
| 7 | W11545804 | Element, Bake (Replaces: W11292248) |
|
Immediately | $ 102.53 | ||||
| 8 | W11290999 | Shield, Broil Element (Replaces: W10911205) |
|
$ 210.95 | |||||
| 9 | W10588738 | Shield, Broil Front |
|
$ 100.55 |
