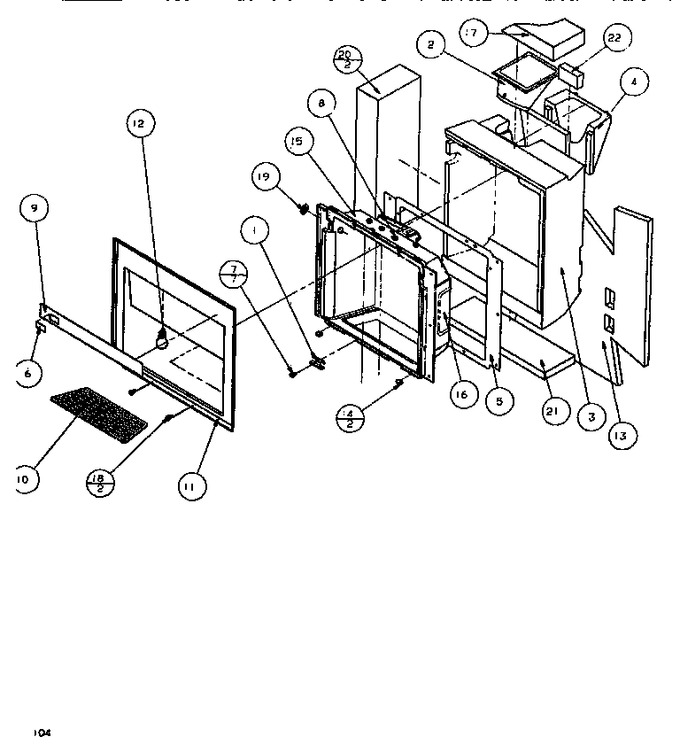

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8992901		Clip		Appelez-nous	-
2	D7750702		Ice, Chute		Appelez-nous	-
3	D7789602		Insulation I & W Cav.		Appelez-nous	-
4	D7790901		Insul I & W Cavity		Appelez-nous	-
5	D7791001		Gasket-cavity		Appelez-nous	-
7	M0216517		Screw		Appelez-nous	-
8	M0274701		Retainer, Ring		Appelez-nous	-
9	D7842232		Membrane L Facade		Appelez-nous	-
9	D7842231		Membrane W/ Facade		Appelez-nous	-
10	D7750603		Grille, Sump (white)		Appelez-nous	-
10	D7750605		Grille, Sump L		Appelez-nous	-
11	D7877536		Facade, Dispenser White		Appelez-nous	-
11	D7877520		Facade Dispenser		Appelez-nous	-
12	M0360401		Light Bulb (220/250) 6 Watt		Appelez-nous	-
13	10220201		Insulation Batt		Appelez-nous	-
14	B8390301		Clip, Facade		Appelez-nous	-
15	D7750013		Cavity, Dispenser		Appelez-nous	-
15	D7750014		Cavity-dispenser, Almond		Appelez-nous	-
16	10295901		Heater, Cavity		Appelez-nous	-
17	B5629053		Insulation Batt		Appelez-nous	-
18	M0219640		Screw		Appelez-nous	-
18	M0219614		Screw K		Appelez-nous	-
19	M0311401		Plug Button		Appelez-nous	-
20	10270904		Insulation Batt		Appelez-nous	-
21	B5629054		Insulation Batt		Appelez-nous	-
22	B5629058		Insulation Batt		Appelez-nous	-
