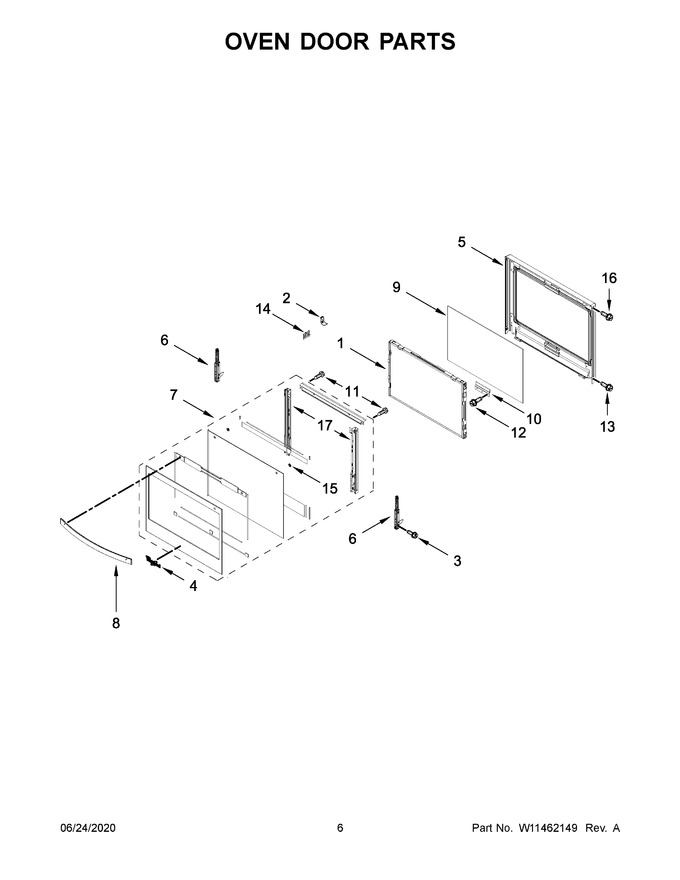

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11458357		Assembly, Window Pack   (Replaces: W11383650)				$ 337.04
2	W10812024		Spring, Door Glass Fixation   (Replaces: W10284285)				$ 165.76
3	WP3196183		Screw   (Replaces: 3196183)			Immediately	$ 8.18
4	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 63.13
5	WPW10320793		Assembly, Liner   (Replaces: W10320793)				$ 337.34
6	W11411963		Hinge, Door		Appelez-nous	-
7	W11457681		Assembly, Door (black)   (Replaces: W11428692)				$ 766.68
8	W11115278		Handle, Door (black)   (Replaces: W11022641)				$ 188.91
9	W11458359		Glass, Inner   (Replaces: W11368483)			Immediately	$ 319.55
10	W10853628		Bracket, Glass   (Replaces: W10284297)				$ 163.86
11	W10831019		Screw   (Replaces: W10480830)			Immediately	$ 8.27
12	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
13	W10828565		Screw (black)   (Replaces: 7101P635-60)				$ 7.85
14	W11025615		Clip, Spring Metal   (Replaces: W10653954)			Immediately	$ 176.14
15	W11676355		Washer, Door   (Replaces: W10319024)			Immediately	$ 14.81
16	WPY706189		Screw   (Replaces: 7101P653-60)			Immediately	$ 7.55
17	W11355410		Rail, Door Side (left)		Appelez-nous	-
17A	W11355411		Rail, Door Side (right)		Appelez-nous	-
7A	W11457684		Assembly, Door (white)   (Replaces: W11428685)				$ 476.60
7B	W11457689		Assembly, Door (stainless)   (Replaces: W11428688)				$ 766.08
8A	W11200667		Handle, Door (white)   (Replaces: W11022642)		Appelez-nous	-
8B	W11113204		Handle, Door (stainless)   (Replaces: W10880280)				$ 188.91
