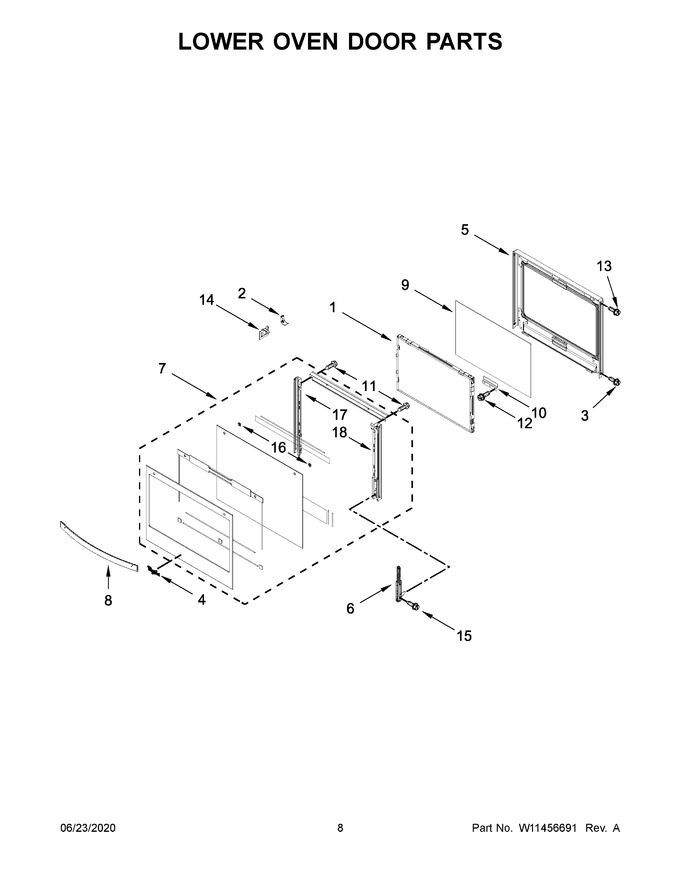

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11455086 | Assembly, Window Pack (Replaces: W11383648) |
|
$ 337.26 | |||||
| 2 | W10812024 | Spring, Door Glass Fixation (Replaces: W10284285) |
|
$ 165.76 | |||||
| 3 | W10828565 | Screw (black) (Replaces: 7101P635-60) |
|
$ 7.85 | |||||
| 4 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 63.13 | ||||
| 5 | WPW10709147 | Assembly, Liner (Replaces: W10709147) |
|
$ 366.69 | |||||
| 6 | W11411966 | Hinge, Slow Close Door |
|
$ 99.12 | |||||
| 7 | W11455430 | Assembly, Door Glass (stainless) (Replaces: W11428683) |
|
$ 713.11 | |||||
| 8 | W11110499 | Assembly, Door Handle (stainless) (Replaces: W10875206) |
|
Immediately | $ 188.20 | ||||
| 9 | W11455100 | Glass, Inner (Replaces: W11368485) |
|
$ 195.37 | |||||
| 10 | W10853628 | Bracket, Glass (Replaces: W10284297) |
|
$ 163.86 | |||||
| 11 | W10831019 | Screw (Replaces: W10480830) |
|
Immediately | $ 8.27 | ||||
| 12 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 13 | WPY706189 | Screw (Replaces: 7101P653-60) |
|
Immediately | $ 7.55 | ||||
| 14 | W11025615 | Clip, Spring Metal (Replaces: W10653954) |
|
Immediately | $ 176.14 | ||||
| 15 | WP3196183 | Screw (Replaces: 3196183) |
|
Immediately | $ 8.18 | ||||
| 16 | W11676355 | Washer, Door (Replaces: W10319024) |
|
Immediately | $ 14.81 | ||||
| 17 | W11355410 | Rail, Door Side (left) |
|
- | |||||
| 18 | W11355411 | Rail, Door Side (right) |
|
- | |||||
| 7A | W11457673 | Assembly, Door Glass (black Stainless) (Replaces: W11428687) |
|
$ 498.30 | |||||
| 8A | W11110500 | Assembly, Door Handle (black Stainless) (Replaces: W10903342) |
|
$ 195.52 |
