Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11384187 Owners Manual Appelez-nous -
2 W11806565 Arm, Hinge (left Hand)   (Replaces: 8534854) In-Stock Immediately $ 142.39

3 W10850371 Stiffener, Door   (Replaces: W10803537) In-Stock Immediately $ 32.88

4 W11116418 Panel, Front (includes 6, 7, 9, 11 & 15) (black)   (Replaces: W11049244) In-Stock Immediately $ 397.60

5 W11763736 Access Panel (black)   (Replaces: W10441006) In-Stock Immediately $ 42.25

6 W11178521 Badge   (Replaces: W10884775) In-Stock Immediately $ 63.13

7 W11105961 Vent (black) Appelez-nous -
8 WPW10503548 Fastener (black)   (Replaces: W10503548) In-Stock Immediately $ 30.39

9 W11036316 Light, Pipe Special Order $ 72.12

10 WPW10109200 Screw   (Replaces: 489470) In-Stock Immediately $ 8.80

11 W11157086 Stud, Mounting   (Replaces: W11049903) In-Stock Immediately $ 8.87

12 W11572098 Handle Assembly (black)   (Replaces: W11325022) Special Order $ 110.30

13 W10831329 Insulation, Toe Panel   (Replaces: W10519755) In-Stock Immediately $ 43.30

14 WP8268961 Sleeve, Friction   (Replaces: 8268961) In-Stock Immediately $ 5.93

15 W10826179 Screw   (Replaces: W10316572) In-Stock Immediately $ 7.55

12A W11757259 Handle Assembly (white)   (Replaces: W11325023) Special Order $ 93.22

12B W11685315 Handle Assembly (stainless)   (Replaces: W11090074) In-Stock Immediately $ 102.81

1A W11457849 Energy Guide Appelez-nous -
1B W11290942 Tech Sheet Appelez-nous -
2A W11806608 Arm, Hinge (right Hand)   (Replaces: 8534853) In-Stock Immediately $ 142.24

4A W11116419 Panel, Front (includes 6, 7, 9, 11 & 15) (white)   (Replaces: W11049245) Special Order $ 415.87

4B W11116420 Panel, Front (includes 6, 7, 9, 11 & 15) (stainless)   (Replaces: W11049227) Special Order $ 422.27

5A WPW10441007 Access Panel (white)   (Replaces: W10441007) Special Order $ 170.94

7A W11105960 Vent (white) Appelez-nous -
7B W11105958 Vent (silver) Appelez-nous -
8A WPW10503549 Fastener (white)   (Replaces: W10503549) In-Stock Immediately $ 7.77


    View Diagram in Separate Window     Print Icon   Print Part List

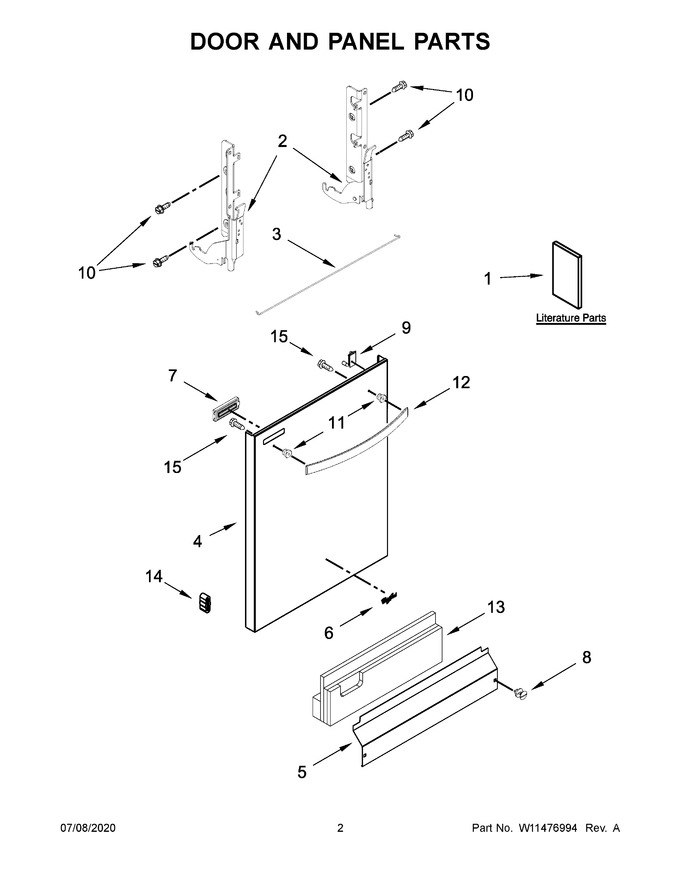

Diagram for WDT705PAKZ0
