Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11662155 Harness, Washer   (Replaces: W11028053) In-Stock Immediately $ 135.21

2 W11026516 Assembly, Channel (left) Appelez-nous -
3 W11026515 Assembly, Channel (right) Appelez-nous -
4 W11108181 Shield, Front Special Order $ 75.63

5 W11108179 Shield, Thermostat Special Order $ 58.38

6 W10210799 Clip, Harness Appelez-nous -
7 WP681414 Screw   (Replaces: 343641) In-Stock Immediately $ 8.47

8 WP308685 Screw   (Replaces: 3393008) In-Stock Immediately $ 7.87

9 W10585084 Coupling, Pressure Hose Appelez-nous -
10 W11561937 Bracket, Angle   (Replaces: W11043836) Special Order $ 70.76


    View Diagram in Separate Window     Print Icon   Print Part List

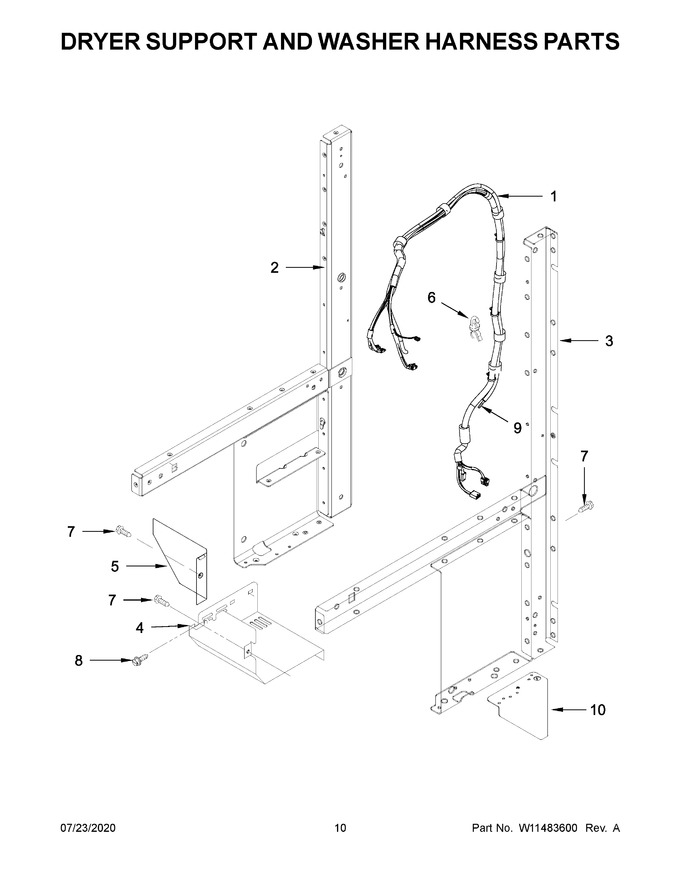

Diagram for WET4027HW1
