Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11756840 Cap, Screw   (Replaces: 8304588BL) Special Order $ 12.34

2 W10359769 Foam, Door Handle Special Order $ 14.76

3 W10737653 Assembly, Inner Door Special Order $ 411.83

4 W10831019 Screw   (Replaces: W10480830) In-Stock Immediately $ 8.27

5 W11111745 Assembly, Outer Door (black Stainless)   (Replaces: W11028414) Appelez-nous -
6 W10903344 Assembly, Handle (black Stainless) Appelez-nous -
7 W11676355 Washer, Door   (Replaces: W10319024) In-Stock Immediately $ 14.81


    View Diagram in Separate Window     Print Icon   Print Part List

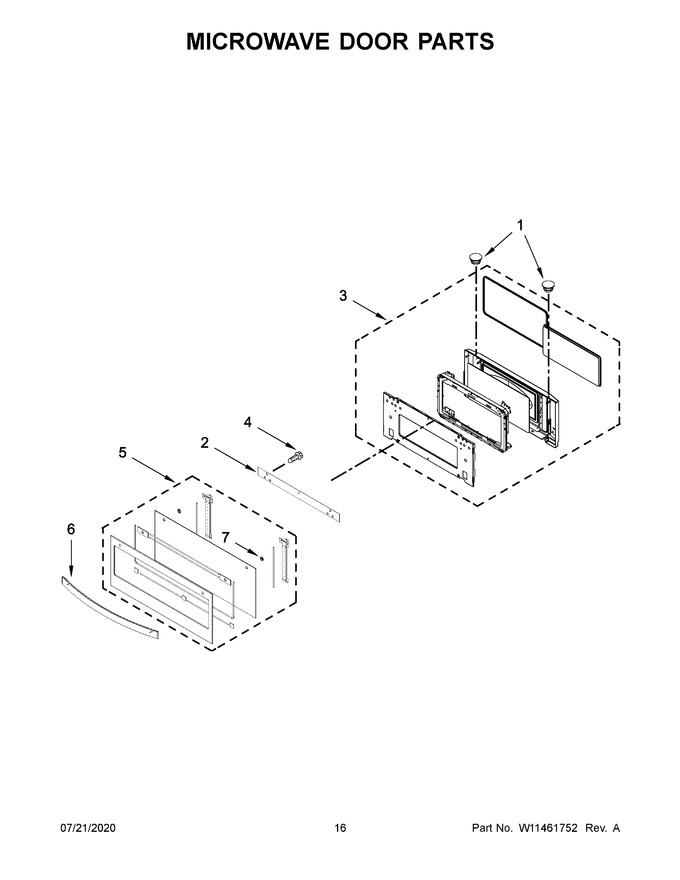

Diagram for WOC75EC7HV04
