View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel Parts
03 - Oven Parts

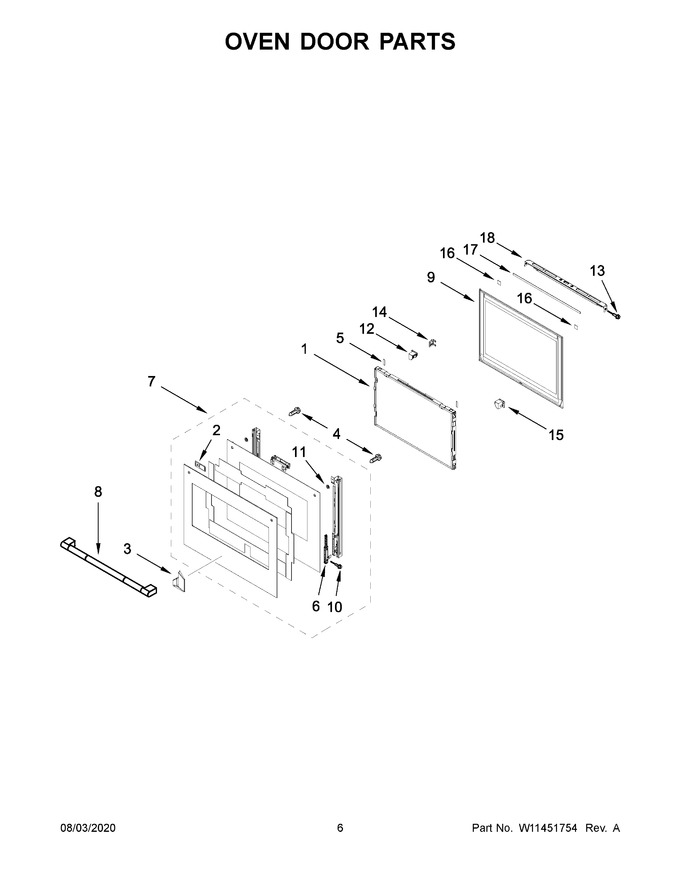

04 - Oven Door Parts
05 - Internal Oven Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11349268 | Assembly, Window Pack (Replaces: W11217321) |
|
$ 384.20 | |||||
| 2 | W10650497 | Spacer, Handle |
|
- | |||||
| 3 | W11320231 | Nameplate (stainless) (Replaces: W11238657) |
|
$ 110.78 | |||||
| 4 | W10831019 | Screw (Replaces: W10480830) |
|
Immediately | $ 8.27 | ||||
| 5 | W10840861 | Spacer (Replaces: W10517440) |
|
$ 10.37 | |||||
| 6 | W11318032 | Hinge, Door |
|
- | |||||
| 7 | W11349395 | Assembly, Door (stainless) (Replaces: W11218353) |
|
$ 659.92 | |||||
| 8 | W11349396 | Assembly, Handle (stainless) (Replaces: W11251201) |
|
- | |||||
| 9 | W11349273 | Assembly, Glass Cavity (Replaces: W11220354) |
|
- | |||||
| 10 | WP3196183 | Screw (Replaces: 3196183) |
|
Immediately | $ 8.18 | ||||
| 11 | W11676355 | Washer, Door (Replaces: W10319024) |
|
Immediately | $ 14.81 | ||||
| 12 | WPW10581831 | Bracket, Door (left) (Replaces: W10581831) |
|
$ 37.20 | |||||
| 13 | W11690596 | Screw With Washer (Replaces: W10284411) |
|
$ 23.31 | |||||
| 14 | WPW10549747 | Clip, Spring (Replaces: W10549747) |
|
$ 20.91 | |||||
| 15 | WPW10581826 | Bracket, Door (right) (Replaces: W10581826) |
|
$ 66.63 | |||||
| 16 | WPW10517428 | Spacer, Vent (Replaces: W10517428) |
|
Immediately | $ 12.44 | ||||
| 17 | W10489274 | Pad, Vent |
|
$ 7.58 | |||||
| 18 | W11280093 | Vent, Top Metal |
|
$ 140.47 |
