01 - Cover Sheet

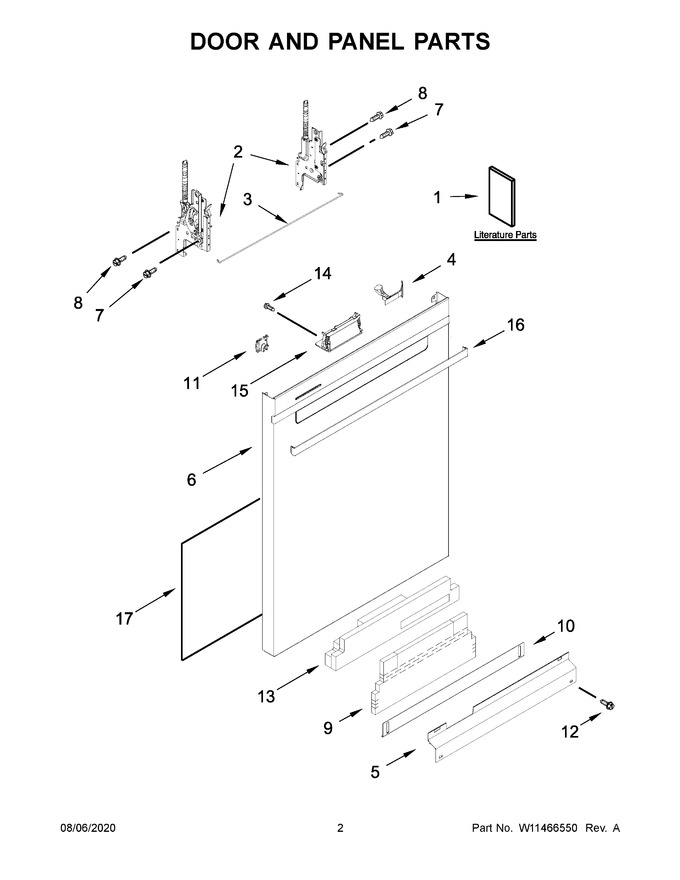

02 - Door And Panel Parts


03 - Control Panel And Inner Door Parts


04 - Tub And Frame Parts


05 - Pump, Washarm And Motor Parts


06 - Upper Wash And Rinse Parts


07 - Upper Rack And Track Parts


08 - Lower Rack Parts


09 - Third Level Rack And Track Parts


10 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11323304		Owners Manual		Appelez-nous	-
2	W11766666		Arm, Hinge (left Hand)   (Replaces: W10920232)			Immediately	$ 59.16
3	W11377160		Cross Brace, Door				$ 33.36
4	W11102920		Light Pipe				$ 68.17
5	W11545318		Access Panel (black)   (Replaces: W11108979)			Immediately	$ 27.90
6	W11462454		Panel, Front (includes 4, 11, 14, 15 & 16) (black)   (Replaces: W11233305)				$ 413.31
7	W11676450		Screw   (Replaces: 3400000)				$ 14.76
8	WPW10309090		Screw   (Replaces: W10309090)			Immediately	$ 76.86
9	W11573704		Insulation, Single Layer   (Replaces: W11038694)			Immediately	$ 29.98
10	W11579528		Toe Panel (black)   (Replaces: W11108991)			Immediately	$ 32.90
11	W10692757		Barrel Nut, Front Panel				$ 16.01
12	W11551775		Screw, Black   (Replaces: W11170267)			Immediately	$ 15.43
13	W11573700		Insulation, Multi-layer   (Replaces: W10919858)			Immediately	$ 44.89
14	WP9741232		Screw   (Replaces: 9741232)			Immediately	$ 5.07
15	W10896300		Pocket, Handle (black)				$ 39.81
16	W11087930		Trim, Handle   (Replaces: W10865090)				$ 134.16
17	W11778318		Insulation, Front Panel   (Replaces: W10919859)				$ 23.86
10A	W11467726		Toe Panel (white)   (Replaces: W11110751)				$ 35.77
12A	W11549054		Screw, White   (Replaces: W11170268)				$ 14.26
15A	W10896301		Pocket, Handle (white)		Appelez-nous	-
15B	W10896302		Pocket, Handle (gray)		Appelez-nous	-
1A	W11419599		Energy Guide		Appelez-nous	-
1B	W11366143		Tech Sheet		Appelez-nous	-
2A	W11766665		Arm, Hinge (right Hand)   (Replaces: W10920230)			Immediately	$ 59.16
5A	W11110746		Access Panel (white)				$ 129.96
6A	W11461685		Panel, Front (includes 4, 11, 14, 15 & 16) (white)   (Replaces: W11233306)				$ 412.77
6B	W11462449		Panel, Front (includes 4, 11, 14, 15 & 16) (biscuit)   (Replaces: W11393492)		Appelez-nous	-
6C	W11461682		Panel, Front (includes 4, 11, 14, 15 & 16) (stainless)   (Replaces: W11233307)			Immediately	$ 455.28
6D	W11461683		Panel, Front (includes 4, 11, 14, 15 & 16) (black Stainless)   (Replaces: W11233308)				$ 442.28
