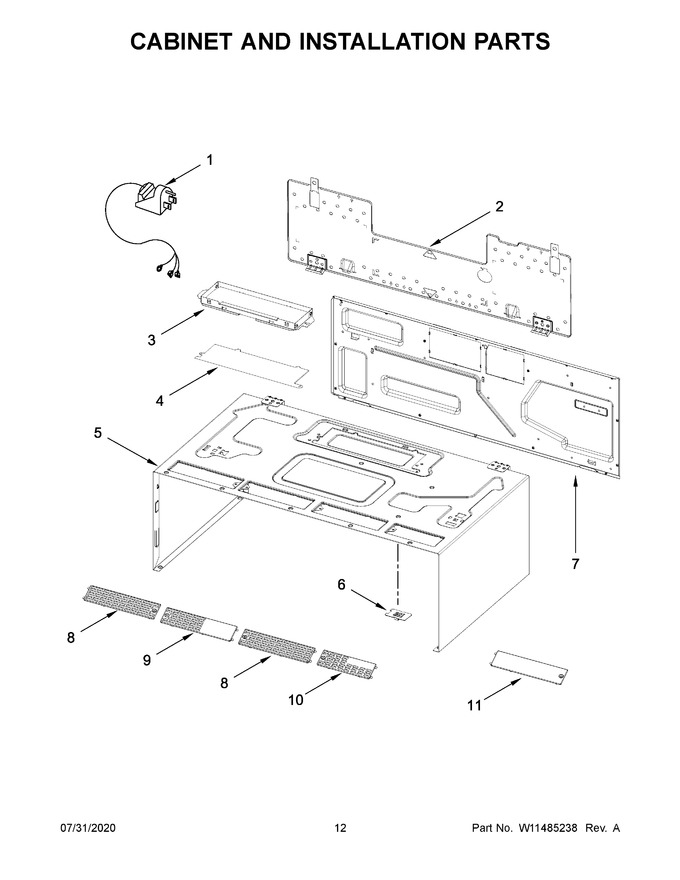

07 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11187360		Cord, Power			Immediately	$ 112.23
2	W11368557		Plate, Mounting   (Replaces: W11086258)			Immediately	$ 44.69
3	W10843943		Damper   (Replaces: W10748710)			Immediately	$ 73.04
4	W11165209		Cover, Exhaust (white)				$ 71.94
5	W11446922		Case, Outer (white)   (Replaces: W11164822)			Immediately	$ 259.82
6	W11122643		Assembly, Mounting Nut			Immediately	$ 14.36
7	W11086259		Backplate, Oven				$ 80.40
8	W11086309		Grille, Vent (long) (white)   (Replaces: W11164793)				$ 114.65
9	W11164786		Grille, Vent (light Access) (white)				$ 114.60
10	W11164816		Grille, Vent (short) (white)				$ 155.91
11	W11397086		Cover, Vent (long) (white)   (Replaces: W11164798)			Immediately	$ 69.06
10A	W11163562		Grille, Vent (short) (black)		Appelez-nous	-
10B	W11086310		Grille, Vent (short) (stainless)				$ 114.64
4A	W11127064		Cover, Exhaust (black)				$ 71.94
4B	W11757140		Cover, Exhaust (stainless)   (Replaces: W11165564)				$ 104.02
5A	W11446923		Case, Outer (black)   (Replaces: W11159946)				$ 237.44
5B	W11493413		Case, Outer (stainless)   (Replaces: W11086299)			Immediately	$ 279.95
5C	W11446949		Case, Outer (black Stainless)   (Replaces: W11165387)				$ 259.82
5D	W11165448		Case, Outer (sunset Bronze)		Appelez-nous	-
8A	W11086309		Grille, Vent (long) (black)   (Replaces: W11163558)				$ 114.65
8B	W11086309		Grille, Vent (long) (stainless)				$ 114.65
9A	W11095781		Grille, Vent (light Access) (black)   (Replaces: W11163552)				$ 114.65
9B	W11095781		Grille, Vent (light Access) (stainless)				$ 114.65
NI	W11397086		Cover, Vent (long) (stainless)   (Replaces: W11095767)			Immediately	$ 69.06
NI	W10821385		Miscellaneous Parts, Hardware, Installation			Immediately	$ 103.72
NI	W11350919		Miscellaneous Parts, Harness, Main		Appelez-nous	-
NI	W11266688		Miscellaneous Parts, Harness, User Interface				$ 153.45
NI	W11213885		Miscellaneous Parts, Harness, Left Touch Control   (Replaces: W11101065)			Immediately	$ 163.07
NI	W11213883		Miscellaneous Parts, Harness, Right Touch Control   (Replaces: W10916210)				$ 162.72
NI	W11322425		Miscellaneous Parts, Harness, Communication   (Replaces: W11300413)				$ 155.32
NI	W11101699		Miscellaneous Parts, Harness, Turntable And Hood Lamp				$ 156.48
NI	W11404326		Miscellaneous Parts, Harness, Door Motor Signal		Appelez-nous	-
NI	W11187937		Miscellaneous Parts, Harness, Pcba Ground Wire				$ 25.84
NI	W11397086		Cover, Vent (long) (black)   (Replaces: W11163586)			Immediately	$ 69.06

    View Diagram in Separate Window       Print Part List
