01 - Cover Sheet

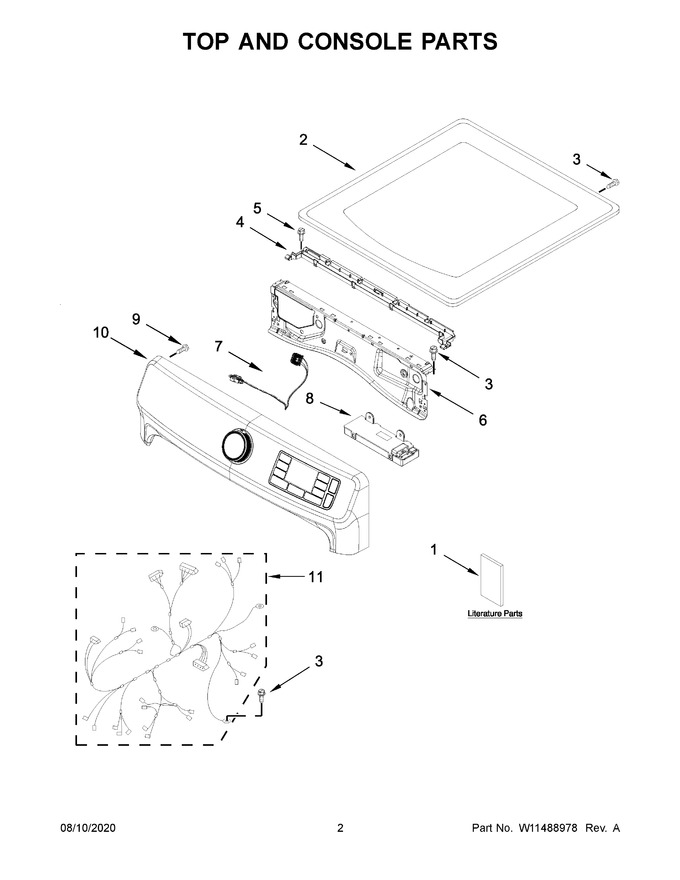

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - Burner Assembly Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11361424 | Owners Manual |
|
- | |||||
| 2 | WPW10208383 | Top (white) (Replaces: W10208383) |
|
$ 323.93 | |||||
| 3 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 4 | W11310027 | Channel, Water (Replaces: W11255768) |
|
$ 23.74 | |||||
| 5 | W11686675 | Screw (Replaces: 12990702) |
|
$ 14.27 | |||||
| 6 | W11480682 | Bracket, Console (Replaces: W10208198) |
|
$ 81.21 | |||||
| 7 | W11315705 | Harness, Wifi (Replaces: W11036819) |
|
$ 14.08 | |||||
| 8 | W11316276 | Assembly, Wifi (Replaces: W11123730) |
|
$ 203.05 | |||||
| 9 | WP8533993 | Screw (Replaces: W10146359) |
|
$ 11.21 | |||||
| 10 | W11367038 | Console Assembly (white) (Replaces: W11314475) |
|
$ 625.10 | |||||
| 11 | W11310045 | Harness, Main Wiring (Replaces: W11157869) |
|
$ 249.00 | |||||
| 10A | W11367320 | Console Assembly (chrome Shadow) (Replaces: W11314480) |
|
Immediately | $ 620.61 | ||||
| 1A | W11460669 | Wiring Diagram |
|
- | |||||
| 1B | W11356335 | Quick Start Guide |
|
- | |||||
| 2A | WPW10460919 | Top (chrome Shadow) (Replaces: W10460919) |
|
$ 303.65 |
