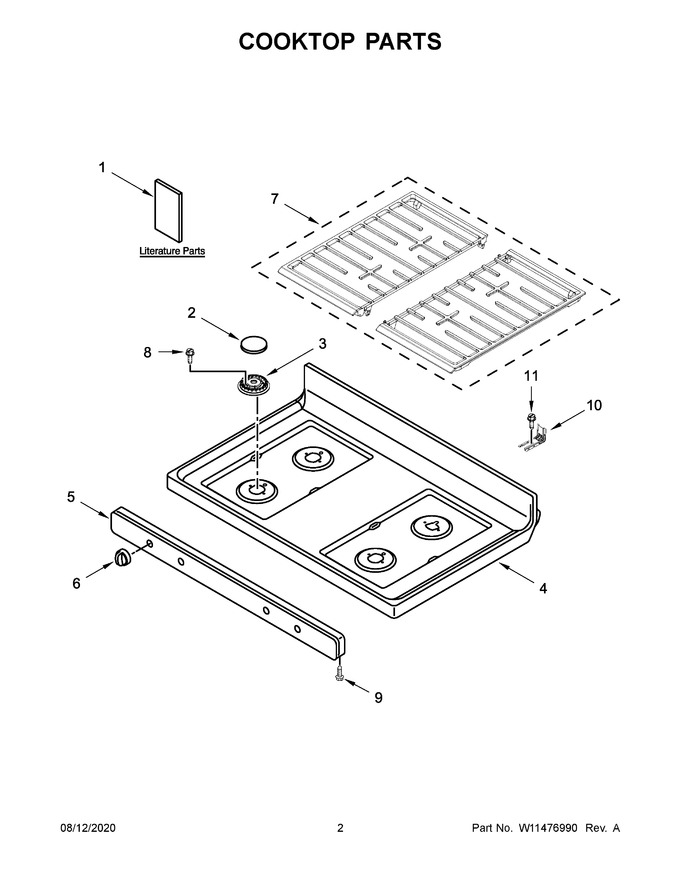

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11382349		Installation Instructions		Appelez-nous	-
2	W11455147		Kit, Burner Cap (black (set Of 4))   (Replaces: W11395131)			Immediately	$ 99.73
3	W11435630		Spreader, Flame (left Front & Right Front)   (Replaces: W11352018)			Immediately	$ 82.12
4	W11477952		Cooktop (white)   (Replaces: W11418090)				$ 420.79
5	W11246787		Panel, Manifold (white)   (Replaces: W11089574)				$ 251.12
6	W11023142		Knob, Control (white)				$ 76.39
7	W11394363		Kit, Grate (set Of 2) (black)   (Replaces: W11241653)				$ 357.58
8	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 14.73
9	WP3196557		Screw   (Replaces: 3196557)			Immediately	$ 7.95
10	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 28.54
11	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 30.72
1A	W11404074		Use And Care Guide		Appelez-nous	-
1B	W11351202		Tech Sheet		Appelez-nous	-
1C	W11352106		Wiring Diagram		Appelez-nous	-
3A	W11435659		Spreader, Flame (left Rear)   (Replaces: W11352020)				$ 84.85
3B	W11435657		Spreader, Flame (right Rear)   (Replaces: W11352021)				$ 84.43
NI	W10797422		Harness, Main		Appelez-nous	-
NI	W11161843		Harness, Bake/broil   (Replaces: W10753750)				$ 216.55
NI	W10334923		Clip, Gas Wiring		Appelez-nous	-
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	3196896		Clip, Wire		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
