SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel Parts


03 - Door Parts

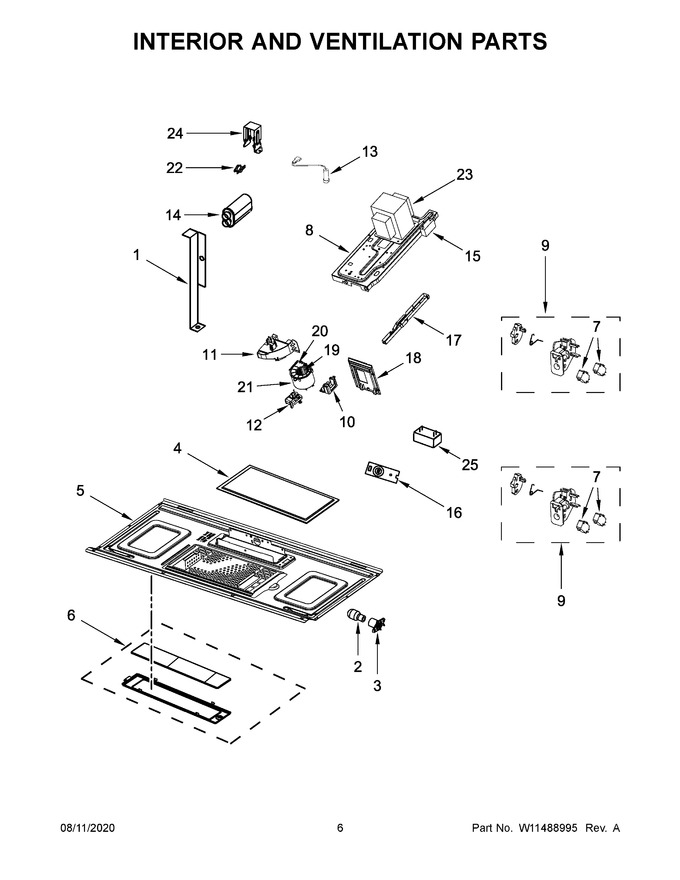

04 - Interior And Ventilation Parts


05 - Air Flow Parts


06 - Turntable Parts


07 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10540715		Bracket, Top Cavity				$ 28.92
2	8206232A		Lamp, 40 Watt   (Replaces: 8206232)			Immediately	$ 7.71
3	W10210871		Holder, Lamp			Immediately	$ 6.39
4	W10208631A		Filter, Grease   (Replaces: W10208631)			Immediately	$ 32.59
5	W10571127		Plate, Bottom				$ 133.47
6	W10240330		Assembly, Lamp Glass And Holder				$ 7.55
7	N/P		Switches, Interlock (not Serviced, Order Interlock Assemblies)		Appelez-nous	-
8	W11350925		Chassis, Component				$ 129.65
9	W11197766		Assembly, Interlock (includes Switches)   (Replaces: W11187757)			Immediately	$ 36.80
10	W10533480		Holder, Ntc				$ 24.77
11	W10631700		Air Guide, Magnetron				$ 47.06
12	W11230994		Motor, Cooling Fan   (Replaces: W11169357)			Immediately	$ 201.13
13	W11256462		Diode, High Voltage   (Replaces: W11222648)			Immediately	$ 34.86
14	W10850446		Capacitor, High Voltage   (Replaces: W10343300)				$ 195.87
15	W11405833		Capacitor, Hood Motor				$ 44.37
16	W10536989		Thermistor, Pcba			Immediately	$ 38.68
17	W10540718		Bracket, Cavity				$ 32.61
18	W11316476		Deflector, Air				$ 77.39
19	W10533503		Wheel, Cooling Fan				$ 34.14
20	W10533502		Cover, Cooling Fan				$ 26.49
21	W10533501		Housing, Cooling Fan			Immediately	$ 31.75
22	W10864742		Thermostat, Cavity 125/-35 Celcius				$ 88.67
23	W11371266		Transformer, High Voltage				$ 371.86
24	W10518719		Bracket, Capacitor		Appelez-nous	-
25	W11035768		Resistor, Cement				$ 37.40

    View Diagram in Separate Window       Print Part List
