01 - Cover Sheet
02 - Cabinet/drum
03 - Door Panel

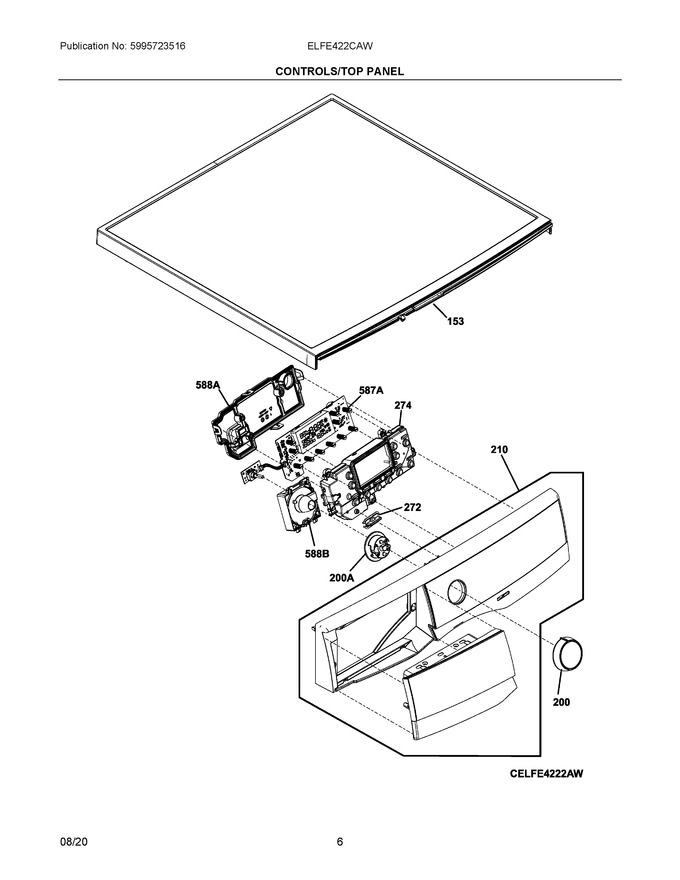

04 - Controls/top Panel
05 - Drying System
06 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 153 | A03616909 | Panel, Top Assy., 597x501.6mm, White |
|
$ 208.47 | |||||
| 200 | A14487601 | Knob, Program Select, Chrome Pltd, Outer |
|
$ 110.85 | |||||
| 210 | A20759302 | Control Panel, Assembly, White, W/drwr Handle |
|
Immediately | $ 257.63 | ||||
| 272 | A06036609 | Button, Rectangular, White |
|
$ 11.25 | |||||
| 274 | A06025111 | Diffuser, Support, Luminous Diode |
|
$ 55.53 | |||||
| 200A | A06078806 | Knob, Program Select, Black, Inner |
|
$ 24.10 | |||||
| 587A | 405552243 | User Interface, Assembly (Replaces: 405551565) |
|
$ 290.24 | |||||
| 588A | A06084602 | Cover, Ui Board, Back |
|
$ 49.64 | |||||
| 588B | A04035706 | Housing, Program Select |
|
$ 27.64 | |||||
| NI | A17667801 | Harness, User Interface, To Main Board, J12 |
|
$ 187.96 |
