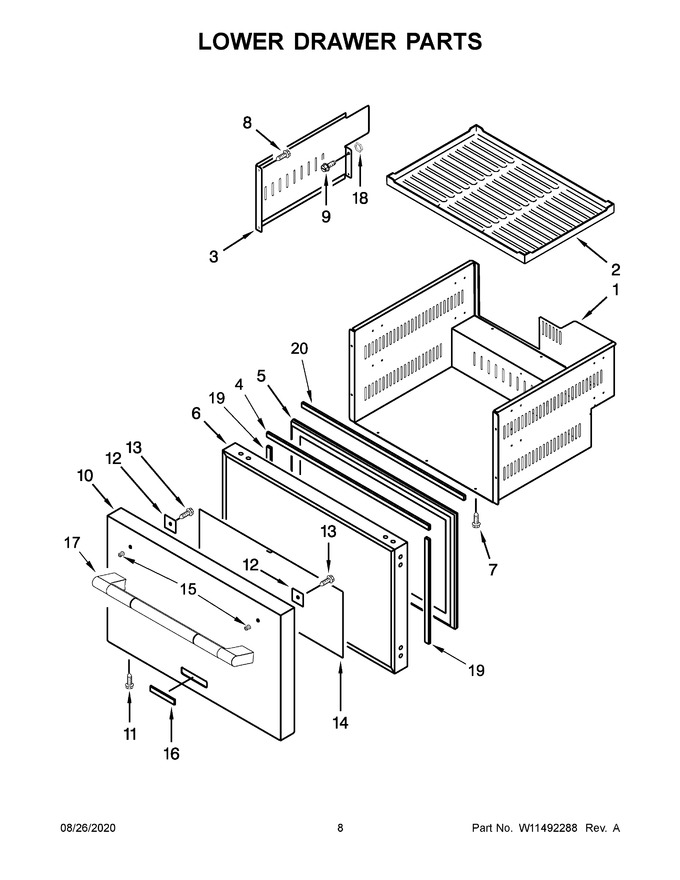

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11461701 | Drawer Box Assembly, Lower |
|
- | |||||
| 2 | W10622026 | Mat, Lower Drawer |
|
$ 185.02 | |||||
| 3 | W11422833 | Bottom Drawer Partition |
|
- | |||||
| 4 | W10204889 | Door Gasket, Long |
|
- | |||||
| 5 | W11625065 | Gasket (Replaces: W10775534) |
|
$ 108.18 | |||||
| 6 | W11422817 | Bottom Foamed Door Assembly |
|
- | |||||
| 7 | W10319183 | Screw |
|
- | |||||
| 8 | W10204809 | Screw |
|
- | |||||
| 9 | W10204810 | Screw |
|
- | |||||
| 10 | W11422815 | Wrap, Stainless Steel |
|
$ 383.20 | |||||
| 11 | W10319185 | Screw |
|
- | |||||
| 12 | W11263339 | Plate, Door Handle (Replaces: W10622815) |
|
$ 17.39 | |||||
| 13 | W10859467 | Screw, Handle (Replaces: W10204866) |
|
$ 80.23 | |||||
| 14 | W10204867 | Wrap Spacer |
|
- | |||||
| 15 | W11179356 | Stud, Mounting (Replaces: W10772902) |
|
$ 16.62 | |||||
| 16 | W11422825 | Name Plate |
|
- | |||||
| 17 | W11422798 | Handle (rise) |
|
- | |||||
| 18 | W10204920 | Nut |
|
- | |||||
| 19 | W10204897 | Door Gasket, Short |
|
- | |||||
| 20 | W10287957 | Seal, Cold Air |
|
- |
