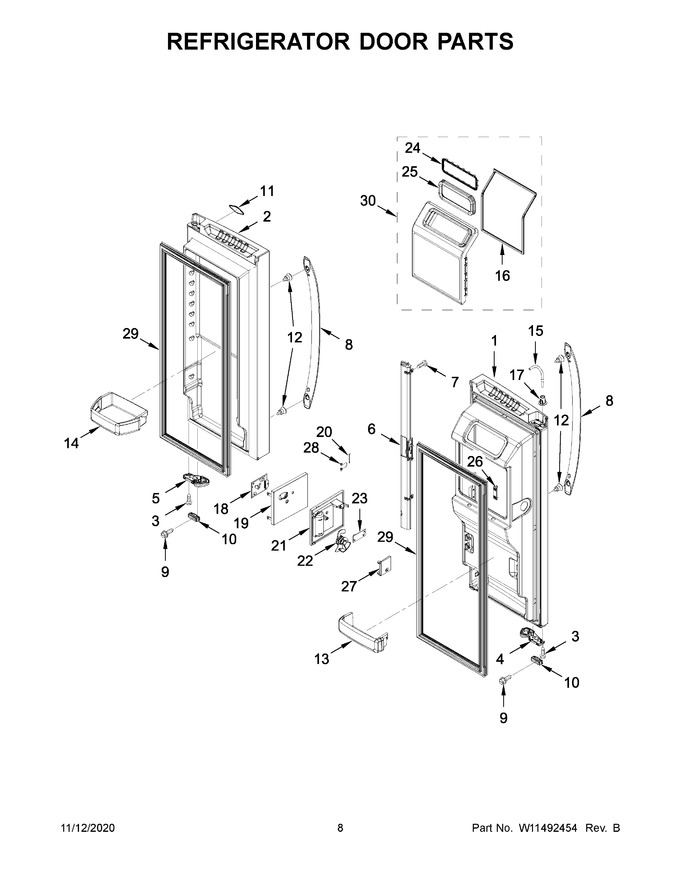

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11518736 | Door, Refrigerator (includes Gasket) Left Hand (stainless) (Replaces: W11405217) |
|
$ 1,130.24 | |||||
| 2 | W11436604 | Door, Refrigerator (includes Gasket) Right Hand (stainless) (Replaces: W11377901) |
|
$ 886.52 | |||||
| 3 | WPW10238319 | Screw (Replaces: W10238319) |
|
$ 7.98 | |||||
| 4 | W10904595 | Latch, Door (left Hand) (Replaces: W10712952) |
|
$ 18.04 | |||||
| 5 | W11212164 | Latch, Door (right Hand) (Replaces: W10712953) |
|
$ 17.59 | |||||
| 6 | W10806457 | Mullion, Door (grey) (Replaces: W10698199) |
|
Immediately | $ 283.65 | ||||
| 7 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 8 | W11163764 | Handle, Door (stainless) (Replaces: W11045530) |
|
Immediately | $ 151.77 | ||||
| 9 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 10 | W11573367 | Bumper, Door (grey) (Replaces: W10407188) |
|
Immediately | $ 23.35 | ||||
| 11 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 87.26 | ||||
| 12 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.45 | ||||
| 13 | W11366475 | Trivet, 2 Liter (Replaces: W10728185) |
|
Immediately | $ 80.10 | ||||
| 14 | W11371716 | Bin, Gallon (Replaces: W10728194) |
|
Immediately | $ 167.63 | ||||
| 15 | WPW10499015 | Tube, Water (Replaces: W10499015) |
|
$ 128.77 | |||||
| 16 | W11624997 | Gasket, Ice Compartment Door (Replaces: W10347085) |
|
$ 69.41 | |||||
| 17 | W11315302 | Clip, Tube |
|
- | |||||
| 18 | W11813704 | Board, Receiver Circuit (Replaces: W10518658) |
|
Immediately | $ 328.97 | ||||
| 19 | W11763407 | Cover, Receiver (Replaces: W10258510) |
|
$ 44.50 | |||||
| 20 | WP2198634 | Pin, Door (Replaces: 2198634) |
|
$ 18.65 | |||||
| 21 | W10258502 | Cover, Emitter |
|
$ 89.74 | |||||
| 22 | W10258540 | Slide, Icemaker Shut Off |
|
$ 11.15 | |||||
| 23 | W10870822 | Board, Emitter Circuit (Replaces: W10832970) |
|
Immediately | $ 222.54 | ||||
| 24 | WPW10400825 | Retainer, Ice Chute (Replaces: W10400825) |
|
$ 32.32 | |||||
| 25 | WPW10347087 | Gasket, Ice Chute (Replaces: W10347087) |
|
$ 48.97 | |||||
| 26 | W11684620 | Vent, Thermistor (Replaces: W10646855) |
|
Immediately | $ 23.16 | ||||
| 27 | WPW10258520 | Door, Emitter (Replaces: W10258520) |
|
$ 79.65 | |||||
| 28 | WP2198635 | Spring, Door (Replaces: 2198635) |
|
$ 91.43 | |||||
| 29 | W10407212 | Gasket, Door (grey) (Replaces: W10873938) |
|
Immediately | $ 254.40 | ||||
| 30 | W11171728 | Assembly, Ice Door (Replaces: W10549592) |
|
$ 216.44 | |||||
| 10A | W10407187 | Bumper, Door (black) |
|
$ 48.34 | |||||
| 1A | W11518735 | Door, Refrigerator (includes Gasket) Left Hand (black Stainless) (Replaces: W11405219) |
|
$ 1,133.31 | |||||
| 29A | W10861004 | Gasket, Door (black) (Replaces: W10873939) |
|
$ 331.17 | |||||
| 2A | W11104459 | Door, Refrigerator (includes Gasket) Right Hand (black Stainless) (Replaces: W11036468) |
|
$ 959.95 | |||||
| 6A | W10698196 | Mullion, Door (black) |
|
$ 145.06 | |||||
| 8A | W11125624 | Handle, Door (black Stainless) (Replaces: W11101972) |
|
$ 190.44 |
