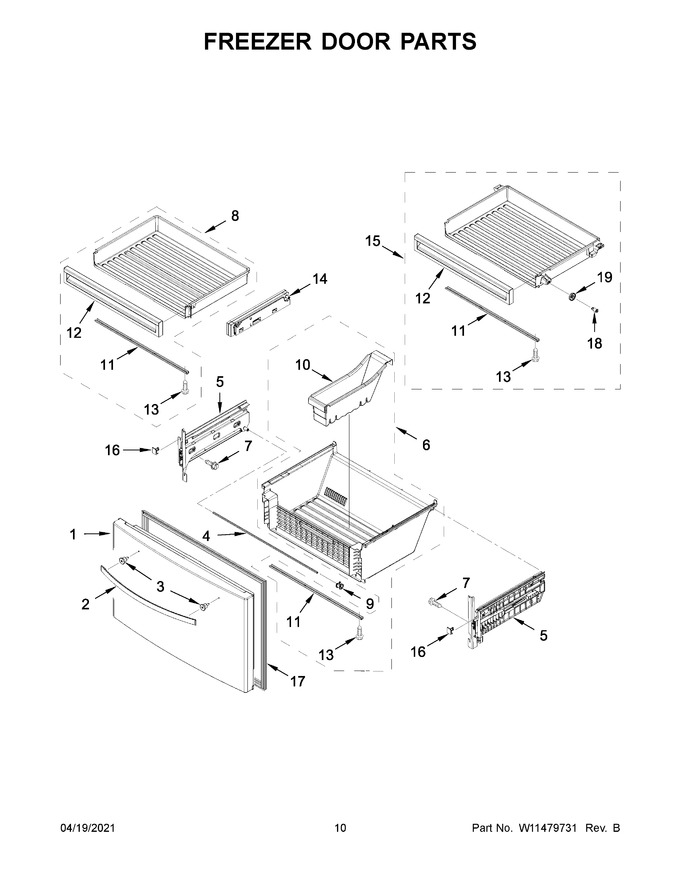

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11104482 | Door, Freezer (includes Door Gasket) (black Stainless) (Replaces: W11024129) |
|
Immediately | $ 916.34 | ||||
| 2 | W11125509 | Handle, Door (black Stainless) (Replaces: W11101977) |
|
Immediately | $ 190.44 | ||||
| 3 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.45 | ||||
| 4 | WPW10503522 | Shaft (Replaces: W10503522) |
|
$ 98.10 | |||||
| 5 | W11668671 | Assembly, Bracket (left Hand) (Replaces: W10795770) |
|
Immediately | $ 529.03 | ||||
| 6 | W10650427 | Bin, Lower |
|
- | |||||
| 7 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 8.78 | ||||
| 8 | WPW10493169 | Bin, Upper (Replaces: W10493169) |
|
Immediately | $ 150.69 | ||||
| 9 | W10852685 | Clip, Shaft (Replaces: W10709748) |
|
$ 11.39 | |||||
| 10 | W10507444 | Divider, Lower |
|
$ 62.14 | |||||
| 11 | W11677723 | Support, Pan (Replaces: W10469177) |
|
Immediately | $ 155.10 | ||||
| 12 | W11175811 | Front, Freezer Pan (Replaces: W10488124) |
|
$ 328.41 | |||||
| 13 | WP489443 | Screw (stainless) (Replaces: 489443) |
|
Immediately | $ 8.33 | ||||
| 14 | W10850332 | Adapter, Upper Pan (left Hand) (Replaces: W10619219) |
|
$ 141.59 | |||||
| 15 | W10858802 | Assembly, Center Pan (Replaces: W10704091) |
|
Immediately | $ 302.45 | ||||
| 16 | WPW10485096 | Stop, Pan (left Hand) (Replaces: W10485096) |
|
$ 83.65 | |||||
| 17 | W10407215 | Gasket, Door (black) (Replaces: W10248748) |
|
$ 317.99 | |||||
| 18 | W11573594 | Axle, Roller (Replaces: W10643690) |
|
$ 19.14 | |||||
| 19 | W11578839 | Roller, Pan (Replaces: W10248555) |
|
$ 14.96 | |||||
| 14A | W10858092 | Adapter, Upper Pan (right Hand) (Replaces: W10619218) |
|
$ 154.11 | |||||
| 16A | WPW10485089 | Stop, Pan (right Hand) (Replaces: W10485089) |
|
$ 86.71 | |||||
| 17A | W10407216 | Gasket, Door (grey) (Replaces: W10248749) |
|
Immediately | $ 267.66 | ||||
| 1A | W11435360 | Door, Freezer (includes Door Gasket) (stainless) (Replaces: W11419943) |
|
$ 898.25 | |||||
| 2A | W11045125 | Handle, Door (stainless) (Replaces: W11115761) |
|
Immediately | $ 190.44 | ||||
| 5A | W11668671 | Assembly, Bracket (right Hand) (Replaces: W10795768) |
|
Immediately | $ 529.03 |
