SELECT A DIAGRAM

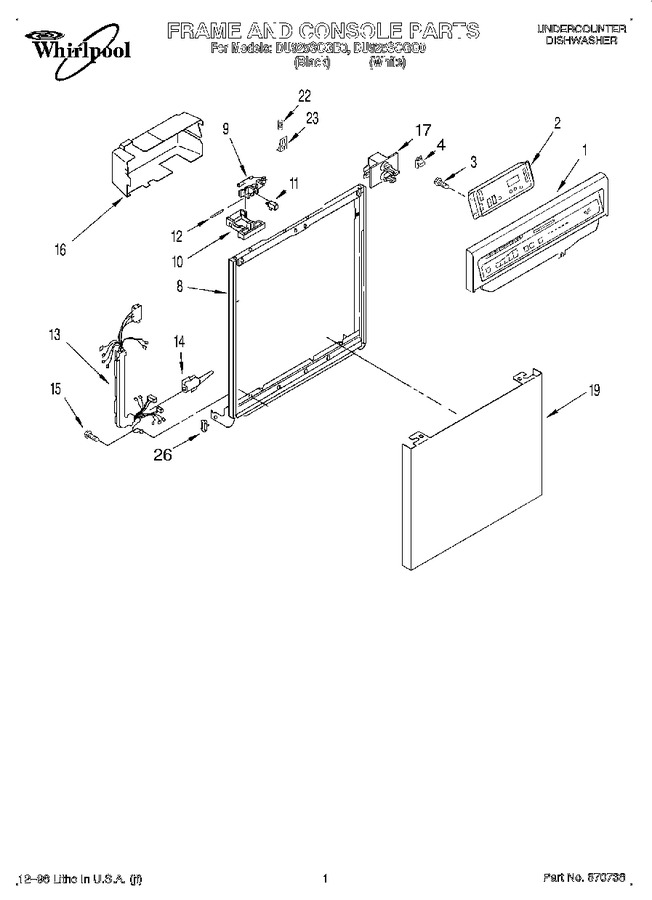

01 - Frame And Console


02 - Inner Door


03 - Tub Assembly


04 - Pump And Motor


05 - Upper Dishrack And Water Feed


06 - Lower Dishrack


07 - Miscellaneous, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8051702		Console (includes Insert) (black)				$ 200.72
1	8051703		Console (includes Insert) (white)		Appelez-nous	-
2	8051136		Control, Electronic				$ 208.71
3	WP304231		Screw,   (Replaces: 304231)			Immediately	$ 8.14
4	675813		Fuse, Thermal   (Replaces: 3376359)			Immediately	$ 48.05
8	9743028		Door Frame (black)				$ 62.19
9	WP3380854		Bolt, Latch   (Replaces: 3380854)			Immediately	$ 66.11
10	3369457		Lever, Latch (black)				$ 5.84
10	3372231		Lever, Latch White		Appelez-nous	-
11	3369325		Switch, (2)		Appelez-nous	-
12	3368955		Pin, Switch (2)				$ 7.75
13	8051279		Harness And Protector		Appelez-nous	-
14	3376405		Elbow, Harness				$ 14.02
15	WP488234		Screw (3)   (Replaces: 3400803)				$ 7.08
16	8051304		Cover, Timer		Appelez-nous	-
17	3374501		Motor, Dual				$ 45.99
19	3379376		Panel Front (white)				$ 116.81
19	3379375		Panel Front (black)				$ 115.07
22	675782		Spring, Door Catch   (Replaces: 3379358)				$ 9.90
23	675782		Catch, Door   (Replaces: 3379357)				$ 9.90
26	WP3373234		Bearing Spring (2)   (Replaces: 3373234)				$ 11.01

    View Diagram in Separate Window       Print Part List
