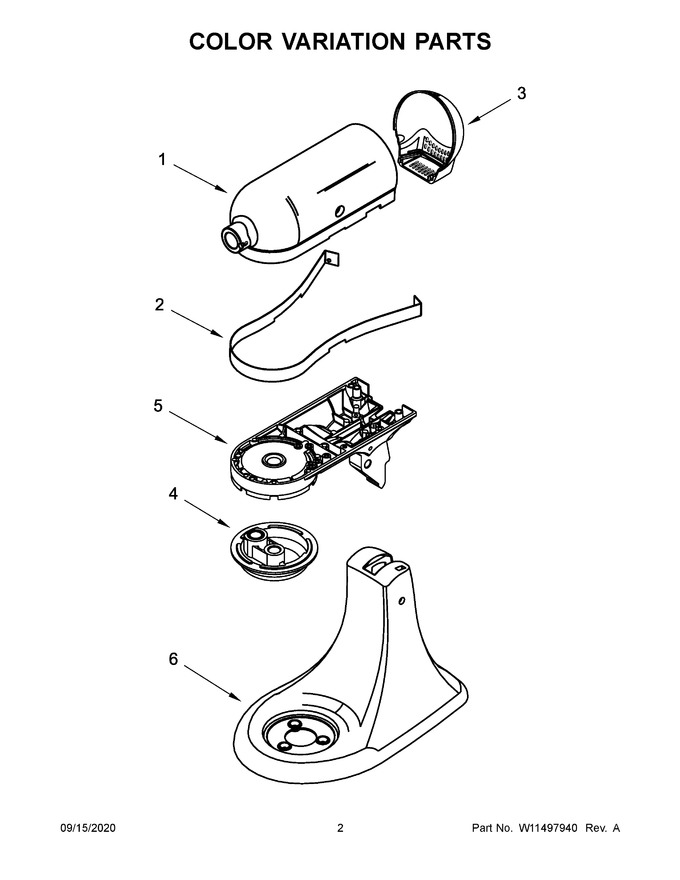

02 - Color Variation Parts


03 - Base And Pedestal Unit Parts


04 - Case, Gearing And Planetary Unit Parts


05 - Motor And Control Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10239115		Motor Housing (candy Apple Red)				$ 108.56
2	W11171098		Trim Band (black)   (Replaces: W11100718)		Appelez-nous	-
3	WPW10239110		End Cover (candy Apple Red)   (Replaces: W10239110)				$ 28.91
4	W10239112		Planetary (candy Apple Red)				$ 45.31
5	W10245786		Lower Gearcase (candy Apple)		Appelez-nous	-
6	W11097313		Pedestal (candy Apple)   (Replaces: W10245720)		Appelez-nous	-
1A	WP240291-21		Motor Housing (empire Red)   (Replaces: 240291-21)				$ 101.29
1B	9709688		Motor Housing (green Apple)		Appelez-nous	-
1C	W11113874		Motor Housing (guava Glaze)		Appelez-nous	-
1D	240291-20		Motor Housing (majestic Yellow)		Appelez-nous	-
3A	W11084313		End Cover (empire Red)   (Replaces: 240253-22)				$ 29.89
3B	9709683		End Cover (green Apple)		Appelez-nous	-
3C	W11113836		End Cover (guava Glaze)		Appelez-nous	-
3D	240253-21		End Cover (majestic Yellow)		Appelez-nous	-
4A	W11084831		Planetary (empire Red)   (Replaces: 240286-23)				$ 27.92
4B	9709685		Planetary (green Apple)		Appelez-nous	-
4C	W11113889		Planetary (guava Glaze)		Appelez-nous	-
4D	240286-22		Planetary (majestic Yellow)		Appelez-nous	-
5A	WP240350-84		Lower Gearcase (empire Red)   (Replaces: 240350-84)				$ 65.91
5B	9709691		Lower Gearcase (green Apple)		Appelez-nous	-
5C	W11113861		Lower Gearcase (guava Glaze)		Appelez-nous	-
5D	240350-82		Lower Gearcase (majestic Yellow)		Appelez-nous	-
6A	3184280		Pedestal (empire Red)		Appelez-nous	-
6B	W10128411		Pedestal (green Apple)		Appelez-nous	-
6C	W11176418		Pedestal (guava Glaze)		Appelez-nous	-
6D	3184281		Pedestal (majestic Yellow)		Appelez-nous	-
