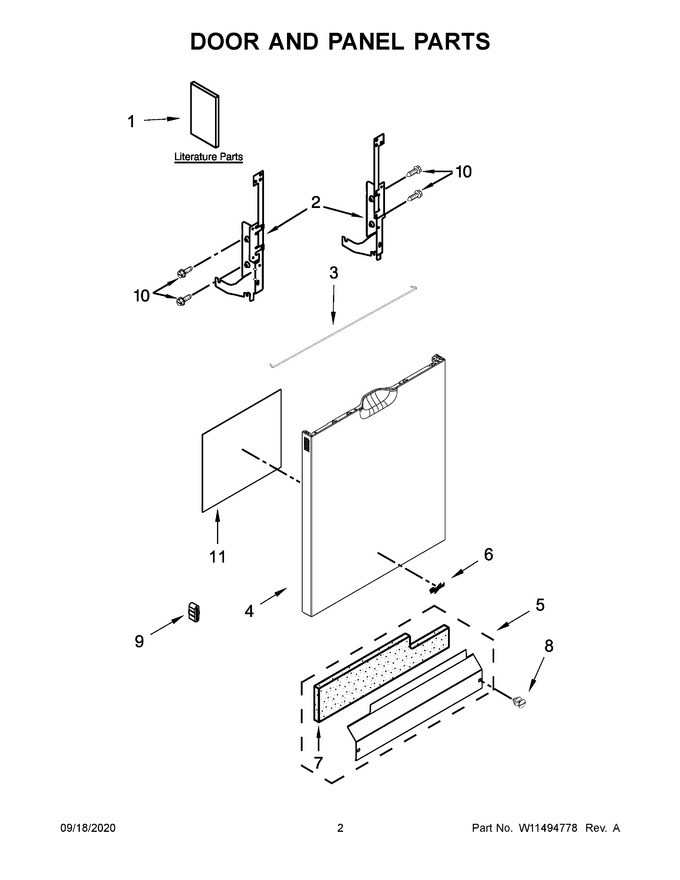

02 - Door And Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11380970		Energy Guide		Appelez-nous	-
2	W11806566		Arm, Hinge (left Hand)   (Replaces: W10274922)			Immediately	$ 64.59
3	W10850371		Stiffener, Door   (Replaces: W10803537)			Immediately	$ 29.59
4	W10802703		Panel, Front (includes Nameplate) (black)   (Replaces: W10629470)				$ 365.54
5	W10827631		Access Panel (black)   (Replaces: W10369023)			Immediately	$ 176.08
6	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 56.82
7	W10831329		Insulation, Toe Panel   (Replaces: W10519755)			Immediately	$ 38.97
8	WPW10503548		Fastener (black)   (Replaces: W10503548)			Immediately	$ 27.35
9	WP8268961		Sleeve, Friction   (Replaces: 8268961)			Immediately	$ 6.01
10	WPW10109200		Screw   (Replaces: 489470)			Immediately	$ 7.92
11	W11126003		Insulation, Front Panel   (Replaces: W10315897)			Immediately	$ 58.73
1A	W11384187		Owners Manual		Appelez-nous	-
1B	W11266092		Tech Sheet		Appelez-nous	-
2A	W11613572		Arm, Hinge (right Hand)   (Replaces: W10274921)			Immediately	$ 75.54
4A	W10846351		Panel, Front (includes Nameplate) (white)   (Replaces: W10629471)				$ 307.99
4B	WPW10629473		Panel, Front (includes Nameplate) (stainless)   (Replaces: W10629473)				$ 349.57
5A	W10827632		Access Panel (white)   (Replaces: W10369025)			Immediately	$ 147.33
8A	WPW10503549		Fastener (white)   (Replaces: W10503549)			Immediately	$ 6.99
