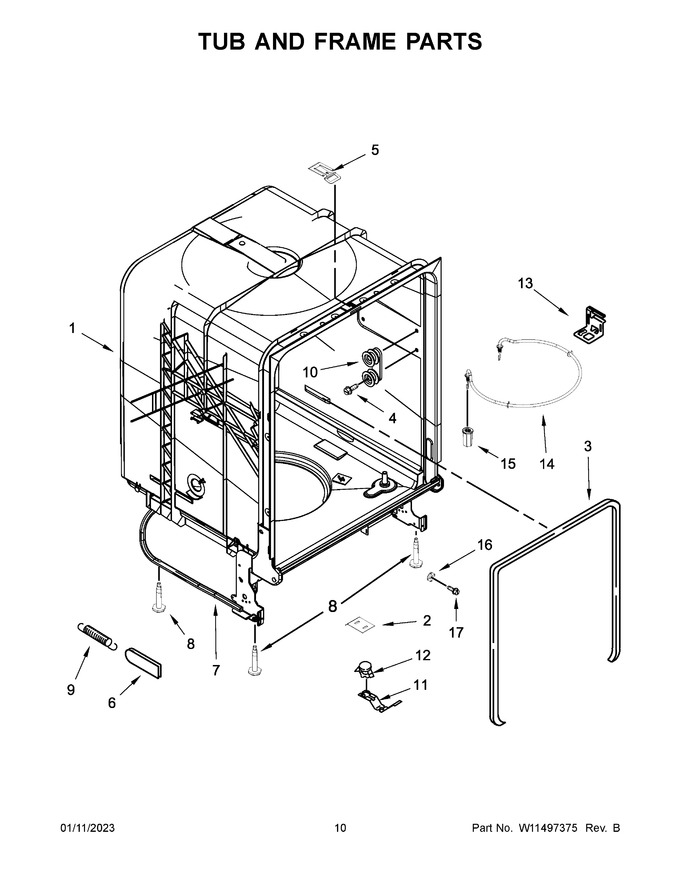

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11513974 | Tube Assembly (includes Heater Assembly) (Replaces: W10266935) |
|
Immediately | $ 827.72 | ||||
| 2 | W10321574 | Shield, Thermostat |
|
$ 25.83 | |||||
| 3 | W11768590 | Seal, Tub (Replaces: W10524469) |
|
Immediately | $ 32.75 | ||||
| 4 | W10817436 | Screw (Replaces: W10341745) |
|
Immediately | $ 8.14 | ||||
| 5 | WP8580309 | Strike, Latch (Replaces: 8580309) |
|
Immediately | $ 44.69 | ||||
| 6 | WP8268990 | Bushing, Door Spring (Replaces: 8268990) |
|
Immediately | $ 30.52 | ||||
| 7 | WPW10271695 | Bottom Support (Replaces: W10271695) |
|
$ 41.04 | |||||
| 8 | 8193716 | Leveler, Leg (Replaces: W10619352) |
|
Immediately | $ 88.96 | ||||
| 9 | WPW10337934 | Spring, Door Balance (Replaces: W10337934) |
|
Immediately | $ 36.34 | ||||
| 10 | WP8575897 | Wheel Assembly (Replaces: 8575897) |
|
Immediately | $ 11.19 | ||||
| 11 | W10539489 | Clip, Thermostat |
|
$ 20.14 | |||||
| 12 | WP661566 | Thermostat (Replaces: 3371618) |
|
Immediately | $ 31.28 | ||||
| 13 | W11027055 | Bracket, Heater Support (Replaces: W10732961) |
|
$ 35.84 | |||||
| 14 | W10518394 | Heater Element Assembly (includes Heater Washer & Nut) (Replaces: W10441445) |
|
Immediately | $ 52.43 | ||||
| 15 | WPW10477552 | Nut, Heater Element (Replaces: W10477552) |
|
Immediately | $ 8.23 | ||||
| 16 | WP3378128 | Washer, Pronged Cup (Replaces: 3378128) |
|
$ 11.81 | |||||
| 17 | WP3400014 | Screw, Grounding (Replaces: 3400014) |
|
$ 8.24 |
