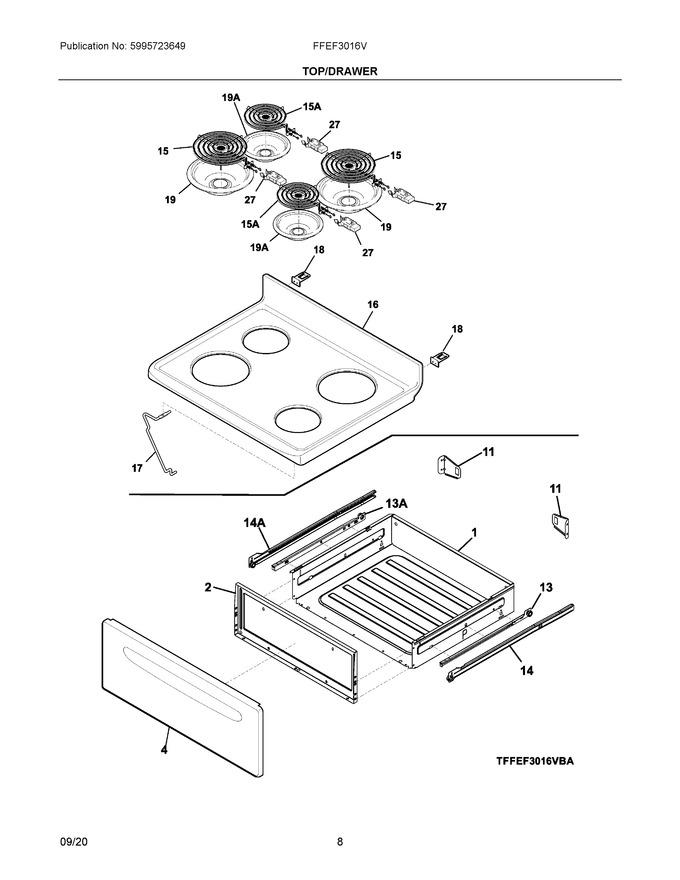

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer, Utility			Immediately	$ 122.90
2	5304511827		Liner, Drawer		Appelez-nous	-
4	5304511973		Panel, Drawer, White, Outer, W/intgr Handle				$ 111.17
11	5304517906		Bracket, Rear Support, (2)				$ 12.64
13	5304517905		Glide, Drawer, Black, Rh Inner				$ 18.54
14	5304517904		Glide, Drawer, Black, Rh Outer			Immediately	$ 28.65
15	5304516159		Element, Surface, 8", W/limiter			Immediately	$ 86.80
16	5304531767		Main Top, White, W/brkt   (Replaces: 316610037)				$ 164.08
17	316057601		Rod, Support, Main Top				$ 71.66
18	316580800		Bracket-hinge, Main Top			Immediately	$ 10.95
19	A316222301		Pan-surface Element, Large, Black, (2)   (Replaces: 318067075)			Immediately	$ 16.84
27	5304516152		Wiring Harness, W/receptical, Surface			Immediately	$ 216.38
13A	5304517903		Glide, Drawer, Black, Lh Inner				$ 32.19
14A	5304517902		Glide, Drawer, Black, Lh Outer			Immediately	$ 53.31
15A	5304516160		Element, Surface, 6", W/limiter			Immediately	$ 76.62
19A	A316222201		Pan-surface Element, Small, Black, (2)   (Replaces: 318067076)			Immediately	$ 16.27
NI	316089500		Screw, 10-16 X .486				$ 14.96
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black, 44*				$ 14.96
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	5308014215		Screw, 6-20 X 0.312				$ 2.53
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.37

    View Diagram in Separate Window       Print Part List
