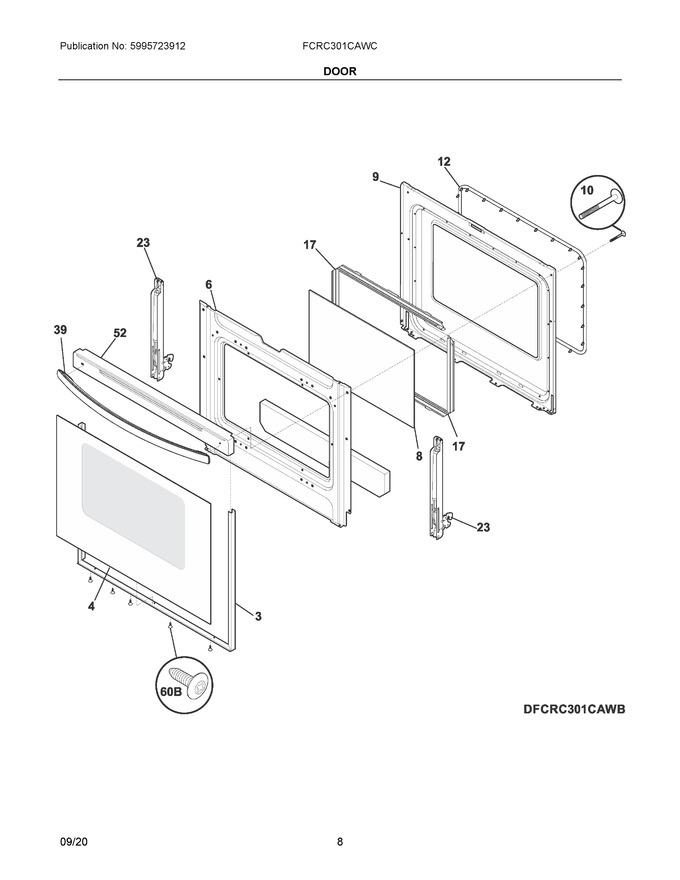

05 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5303935318 | Trim Kit-door, 3 Sided, White, W/tape (Replaces: 5303935393) |
|
Immediately | $ 92.93 | ||||
| 4 | 316559108 | Glass Assembly, Outer, White |
|
Immediately | $ 240.84 | ||||
| 6 | 316406328 | Shield, Wool |
|
$ 96.90 | |||||
| 8 | 5304503232 | Glass, Oven Door, Inner |
|
$ 129.94 | |||||
| 9 | 316423719 | Liner, Oven Door |
|
$ 170.22 | |||||
| 10 | 316433300 | Screw, 10-14 X 2.125", Handle Mtg. |
|
Immediately | $ 30.55 | ||||
| 12 | 5304498835 | Seal, Oven Door (Replaces: 316403101) |
|
Immediately | $ 98.60 | ||||
| 17 | 5304504811 | Spacer, Glass |
|
Immediately | $ 27.80 | ||||
| 23 | 316575957 | Hinge, Oven Door, Light Pink |
|
$ 66.57 | |||||
| 39 | 5304522047 | Handle, Door |
|
Immediately | $ 136.25 | ||||
| 52 | 316575500 | Cap, Door Trim, White |
|
Immediately | $ 135.66 | ||||
| 60B | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 30.55 | ||||
| NI | 5303285179 | Screw, Wafer Head, 8-32t X 0.500, Black, 44* |
|
$ 14.96 | |||||
| NI | 316483102 | Label, Anti-tip |
|
$ 3.95 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 30.55 | ||||
| NIA | 316418900 | Screw, Sims Lp, #8-32 X 5/16", Black |
|
$ 15.75 |
