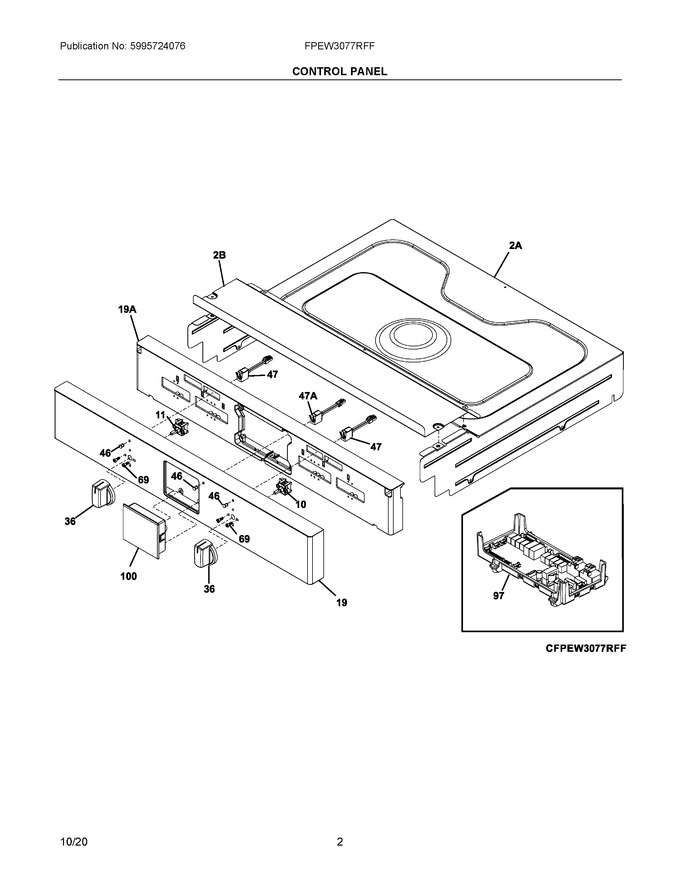

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	808843102		Potentiometer, Oven Temp				$ 164.59
11	5304493649		Potentiometer, Oven Mode   (Replaces: 808843101)			Immediately	$ 79.54
19	5304500602		Control Panel, Assembly, Stainless, Outer				$ 486.65
36	5304500593		Knob, Oven Control, Stainless				$ 158.41
46	316557300		Lens-light/lamp, Indicator, Clear			Immediately	$ 18.63
47	316022508		Light/lamp, Indicator, Blue, Oven				$ 30.33
69	5303288565		Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg				$ 3.47
97	316472807		Circuit Board, Assembly, Ovc1, W/housing			Immediately	$ 407.52
100	808751526		Control Assembly, Complete, Hmi   (Replaces: 808751515)			Immediately	$ 588.89
19A	5304500594		Control Panel, Frame				$ 314.75
2A	5304521623		Shield, Wire, Top				$ 107.02
2B	5304520853		Cover, Control Access				$ 64.34
47A	316022510		Light/lamp, Indicator, Blue, Preheat				$ 34.55
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 30.55
NI	5304514832		Harness, Wiring, Upper Oven, Hall Effect				$ 57.30
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	5304517673		Harness, Wiring, Communication, Ovc1 To Ovc2				$ 22.75
NI	5304517679		Harness, Wiring, Potentiometers, Single Oven				$ 44.66
NIA	5303323129		Screw, 8 X 0.750		Appelez-nous	-
NIA	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
