01 - Cover Sheet
02 - Top And Cabinet Parts

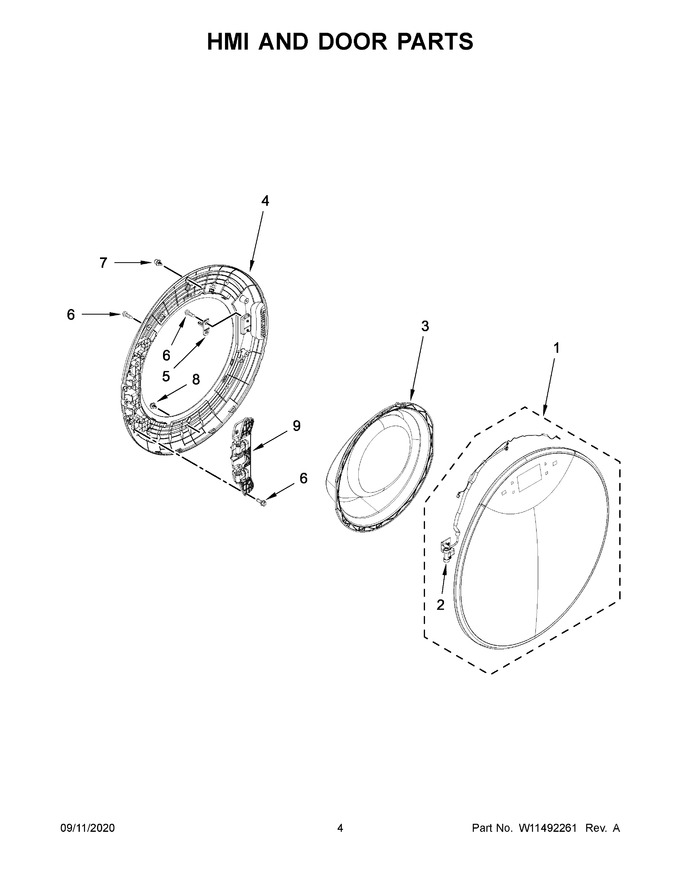

03 - Hmi And Door Parts
04 - Dispenser Parts
05 - Water System Parts
06 - Tub And Basket Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11712611 | Assembly, Outer Door (chrome Shadow) (Replaces: W11327974) |
|
Immediately | $ 837.24 | ||||
| 2 | W11338345 | Harness, Tube Assembly (Replaces: W11114000) |
|
$ 180.44 | |||||
| 3 | W11316777 | Door, Clear Insert (Replaces: W11171604) |
|
$ 313.70 | |||||
| 4 | W11097034 | Door, Inner |
|
$ 171.75 | |||||
| 5 | W11316914 | Strike, Door (Replaces: W10921697) |
|
Immediately | $ 28.72 | ||||
| 6 | WP8534022 | Screw (Replaces: 8534022) |
|
$ 8.37 | |||||
| 7 | W11230200 | Bumper, Door (upper) |
|
$ 23.68 | |||||
| 8 | W11310051 | Bumper, Door (lower) (Replaces: W11178950) |
|
Immediately | $ 24.79 | ||||
| 9 | W11310038 | Hinge Assembly (Replaces: W11114002) |
|
$ 109.38 |
