01 - Cover Sheet

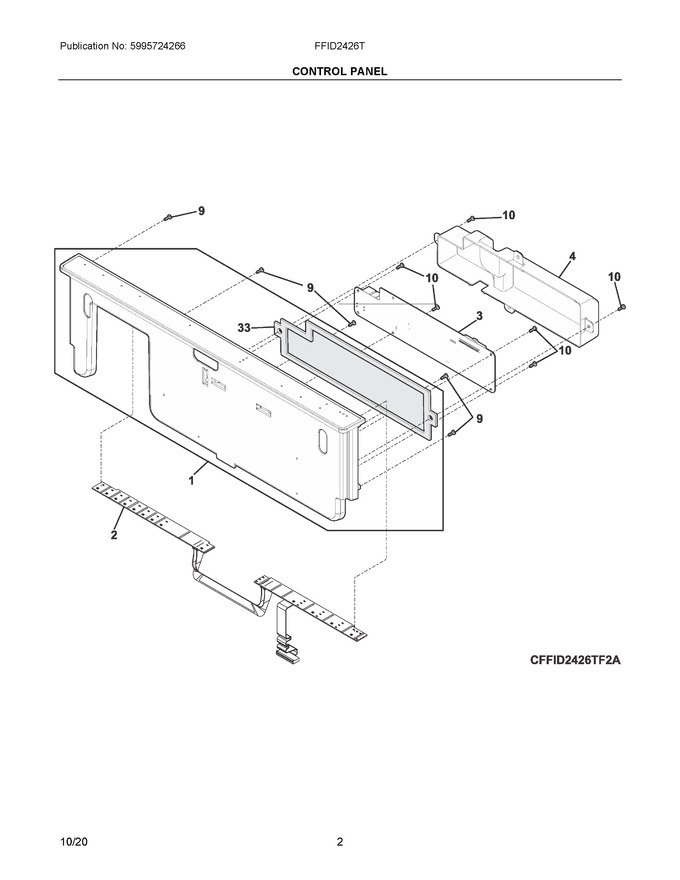

02 - Control Panel
03 - Door
04 - Tub
05 - Motor & Pump
06 - Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304518473 | Console Assembly, W/overlay, Black, & Cover Gasket |
|
Immediately | $ 443.55 | ||||
| 2 | 5304518467 | Switch Assembly, Pcb Tactile, W/harnesses |
|
Immediately | $ 126.91 | ||||
| 3 | A11147301 | Board, Control (Replaces: 5304518470) |
|
Immediately | $ 185.25 | ||||
| 4 | 5304517614 | Cover, Control |
|
$ 22.49 | |||||
| 9 | 154783101 | Screw, Plt, 8-10 |
|
$ 7.88 | |||||
| 10 | 154294701 | Screw, #7 Plas .375, (6), Disp. Assy. |
|
$ 10.24 | |||||
| 33 | 154478901 | Gasket, Cover |
|
$ 68.51 | |||||
| NI | 5304526751 | Harness Assembly, Main, W/latch, And High Limit, Thermostat |
|
$ 166.33 |
