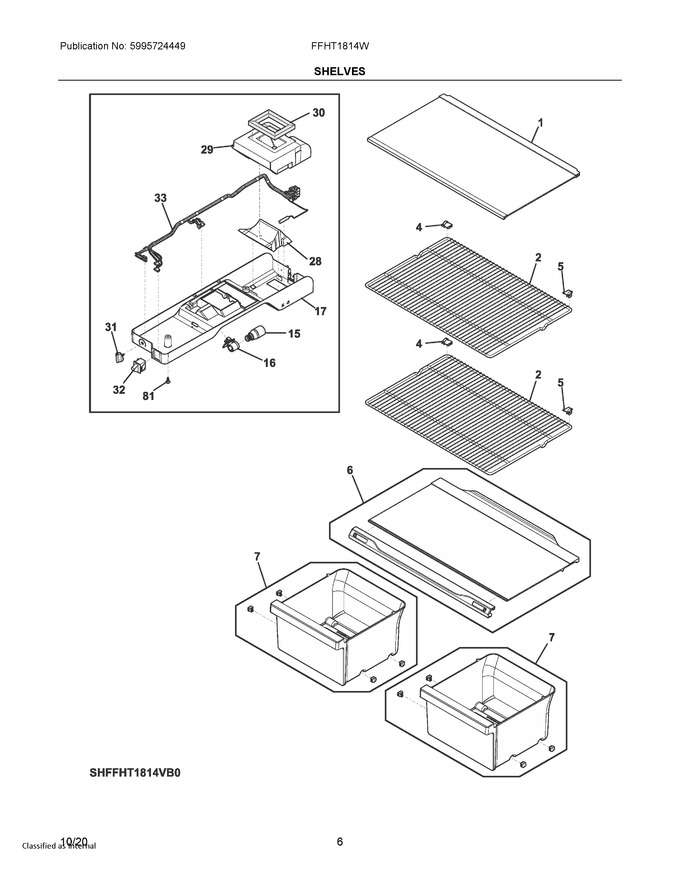

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304535387 | Shelf Assembly, Freezer, Glass, W/trim (Replaces: 5304519660) |
|
Immediately | $ 79.93 | ||||
| 2 | 5304525222 | Shelf-sliding, Fw Wire 18'cd, Wire Shelf |
|
$ 103.65 | |||||
| 4 | 5304522258 | Clip, Wire Shelf, Lh |
|
Immediately | $ 10.15 | ||||
| 5 | 5304522259 | Clip, Wire Shelf, Rh |
|
Immediately | $ 10.15 | ||||
| 6 | 5304525731 | S/a Crisper Cover Br30, Glass, Cover Wt |
|
- | |||||
| 7 | 5304519801 | Pan Assembly, Crisper, W/sliders |
|
Immediately | $ 94.63 | ||||
| 15 | 5304522314 | Bulb, Light, E17/12 Led |
|
Immediately | $ 44.66 | ||||
| 16 | 5304522315 | Socket, Led Light |
|
Immediately | $ 11.80 | ||||
| 17 | 5304522316 | Housing, Control Box |
|
$ 108.70 | |||||
| 28 | 5304522317 | Diffuser, Control Box, Bottom |
|
$ 18.60 | |||||
| 29 | 5304522318 | Diffuser, Control Box, Top |
|
$ 18.54 | |||||
| 30 | 5304520493 | Seal, Air Duct, Top |
|
Immediately | $ 20.22 | ||||
| 31 | 5304522319 | Knob, Control |
|
Immediately | $ 9.27 | ||||
| 32 | 140118119027 | Switch, Door/light, White (Replaces: 5304520495) |
|
Immediately | $ 4.83 | ||||
| 33 | 5304537127 | Harness, Wiring, Control Box, W/temp Sensor (Replaces: 5304522320) |
|
- | |||||
| 81 | 5304519765 | Screw, Hx Wash Hd, M4.2 X 12 |
|
Immediately | $ 3.37 |
