View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

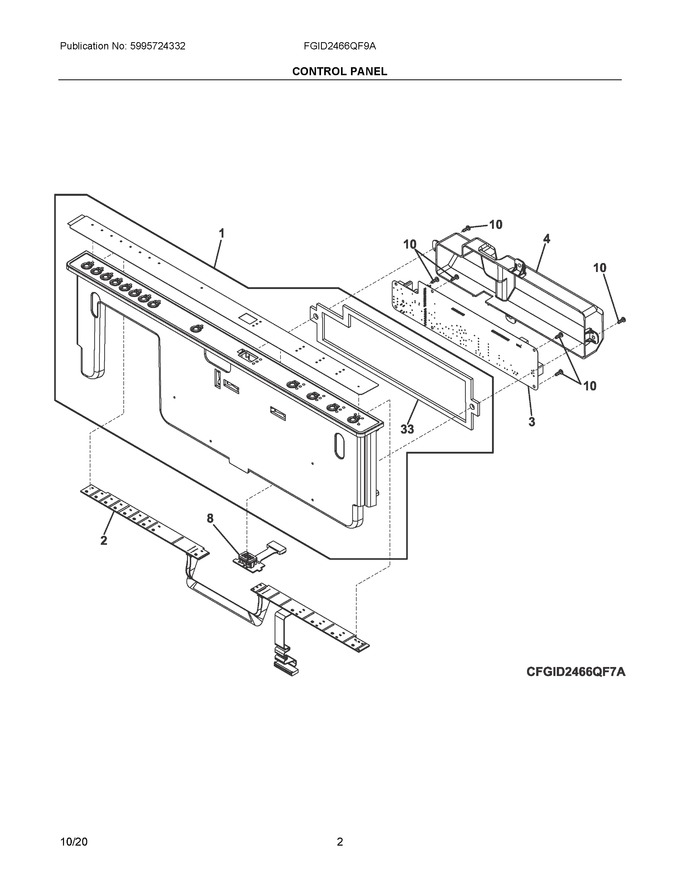

02 - Control Panel
03 - Door
04 - Tub
05 - Motor & Pump
06 - Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304520552 | Console Assembly, W/overlay, Black, & Cover Gasket |
|
Immediately | $ 455.76 | ||||
| 2 | 5304517587 | Switch Assembly, Pcb Tactile, W/harnesses |
|
Immediately | $ 119.69 | ||||
| 3 | 5304520582 | Board, Control |
|
Immediately | $ 232.14 | ||||
| 4 | 5304517614 | Cover, Control |
|
$ 22.49 | |||||
| 8 | 5304517591 | Display Assembly, Digital |
|
Immediately | $ 87.56 | ||||
| 10 | 154294701 | Screw, #7 Plas .375, (6), Disp. Assy. |
|
$ 10.24 | |||||
| 33 | 154478901 | Gasket, Cover |
|
$ 68.51 | |||||
| NI | 154783101 | Screw, Plt, 8-10 |
|
$ 7.88 | |||||
| NI | 5304526752 | Harness Assembly, Main, W/latch, And High Limit, Thermostat |
|
$ 167.88 |
