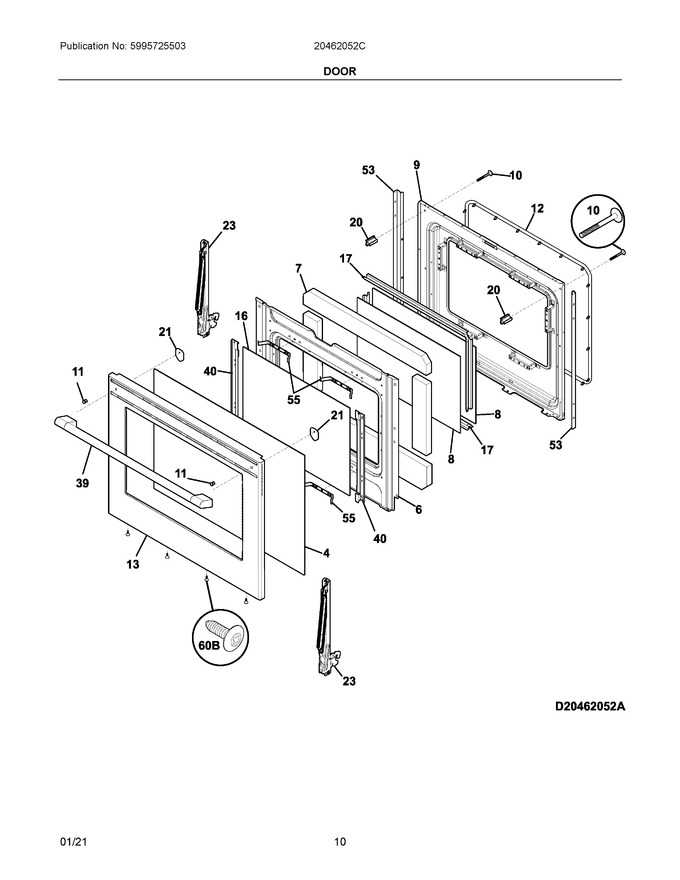

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316452758		Glass, Oven Door, Black, W/foil			Immediately	$ 237.63
6	316406328		Shield, Wool				$ 96.90
7	316405600		Insulation, Oven Door				$ 85.05
8	5304503232		Glass, Oven Door, Heat Barrier, Inner, Hrc2   (Replaces: 316117502)				$ 129.94
9	316423719		Liner, Oven Door				$ 170.22
10	5304507924		Screw, Handle Mtg., #10-24 X 2, (2)   (Replaces: 316439505)			Immediately	$ 18.31
11	5304494420		Nut, Hour Glass, Handle Mtg.				$ 14.18
12	5304498835		Seal, Oven Door   (Replaces: 316403101)			Immediately	$ 98.60
13	5304532516		Panel, Oven Door, Black Stainless, Outer   (Replaces: 316603904)				$ 159.25
16	316552801		Glass, Door, Airwash				$ 42.14
17	5304504811		Spacer, Glass			Immediately	$ 27.80
20	316284100		Spacer, Door Handle, (2)				$ 16.54
21	316533801		Plate, Distribution, Load			Immediately	$ 6.30
23	316575911		Hinge, Oven Door, Brown				$ 114.60
39	5304525008		Handle, Black Stainless				$ 229.16
40	316552401		Bracket, Airwash Glass, (2)				$ 32.03
53	5304532042		Shield, Door Filler, Black, (2)   (Replaces: 316408201)				$ 28.65
55	316408300		Bracket, Glass Support, (4)				$ 23.59
60B	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	241701902		Screw Driver				$ 22.05
NI	5304414648		Set Screw				$ 15.75
NI	316483102		Label, Anti-tip				$ 3.95
NI	5304508804		Touch Up Paint, Pen, Black Stainless		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black, 44*				$ 14.96
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 15.75

    View Diagram in Separate Window       Print Part List
