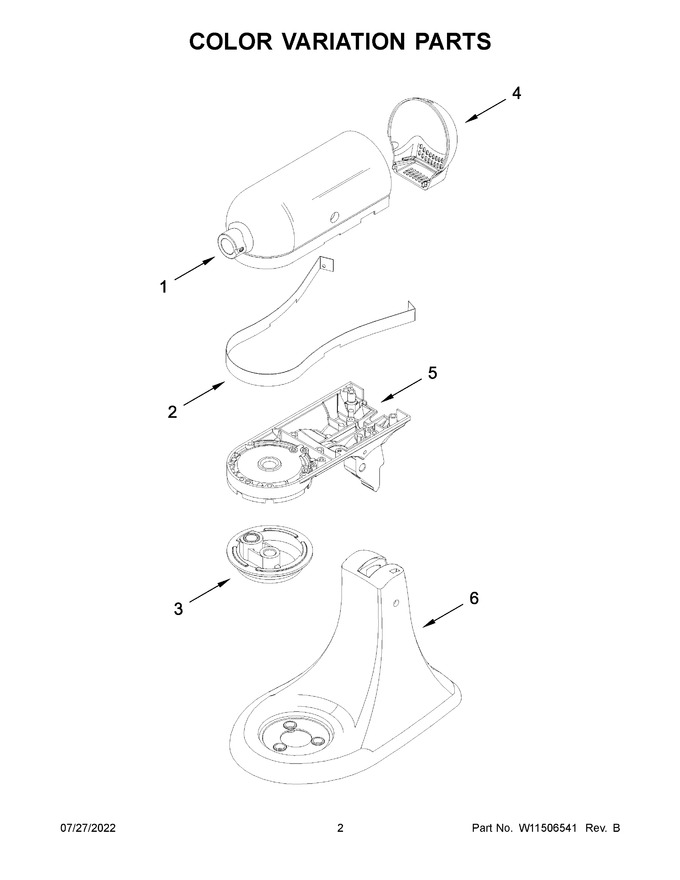

02 - Color Variation Parts
03 - Case, Gearing And Planetary Unit Parts
04 - Motor And Control Unit Parts
05 - Base And Pedestal Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11170225 | Motor Housing (black Matte) (Replaces: W10885700) |
|
- | |||||
| 2 | W10348219 | Trim Band (black) |
|
- | |||||
| 3 | W11170306 | Planetary (black Matte) (Replaces: W10885706) |
|
$ 26.56 | |||||
| 4 | W11170239 | End Cover (black Matte ) (Replaces: W10885707) |
|
- | |||||
| 5 | W11170233 | Lower Gearcase (black Matte) (Replaces: W10885699) |
|
- | |||||
| 6 | W11170300 | Pedestal W/feet (black Matte) (Replaces: W10885695) |
|
- | |||||
| 1A | W10334291 | Motor Housing (slate/dark Pewter) |
|
- | |||||
| 1B | 9707662 | Motor Housing (ice/ice Blue) |
|
- | |||||
| 1C | W11444673 | Motor Housing (mineral Water Blue) |
|
- | |||||
| 1D | W10349279 | Motor Housing (silver/silver Tread) |
|
$ 105.44 | |||||
| 1E | W11188863 | Motor Housing (toffee Delight) (Replaces: W11159843) |
|
- | |||||
| 3A | W10334282 | Planetary (slate/dark Pewter) |
|
- | |||||
| 3B | 9707665 | Planetary (ice/ice Blue) |
|
$ 44.59 | |||||
| 3C | W11444675 | Planetary (mineral Water Blue) |
|
- | |||||
| 3D | W10349281 | Planetary (silver/silver Tread) |
|
- | |||||
| 3E | W11159845 | Planetary (toffee Delight) |
|
- | |||||
| 4A | W10334280 | End Cover (slate/dark Pewter) |
|
- | |||||
| 4B | 9707667 | End Cover (ice/ice Blue) |
|
- | |||||
| 4C | W11444606 | End Cover (mineral Water Blue) |
|
- | |||||
| 4D | W10348293 | End Cover (silver/silver Tread) |
|
- | |||||
| 4E | W11159846 | End Cover (toffee Delight) |
|
- | |||||
| 5A | W10334294 | Lower Gearcase (slate/dark Pewter) |
|
- | |||||
| 5B | 9707659 | Lower Gearcase (ice/ice Blue) |
|
- | |||||
| 5C | W11444671 | Lower Gearcase (mineral Water Blue) |
|
- | |||||
| 5D | W10349276 | Lower Gearcase (silver/silver Tread) |
|
- | |||||
| 5E | W11188864 | Lower Gearcase (toffee Delight) (Replaces: W11159847) |
|
- | |||||
| 6A | W10334297 | Pedestal W/feet (slate/dark Pewter) |
|
- | |||||
| 6B | 9707656 | Pedestal W/feet (ice/ice Blue) |
|
- | |||||
| 6C | W11444670 | Pedestal W/feet (mineral Water Blue) |
|
- | |||||
| 6D | W10348330 | Pedestal W/feet (silver/silver Tread) |
|
- | |||||
| 6E | W11231607 | Pedestal W/feet (toffee Delight) |
|
- |
