SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet Parts


03 - Shelf Parts


04 - Door Parts

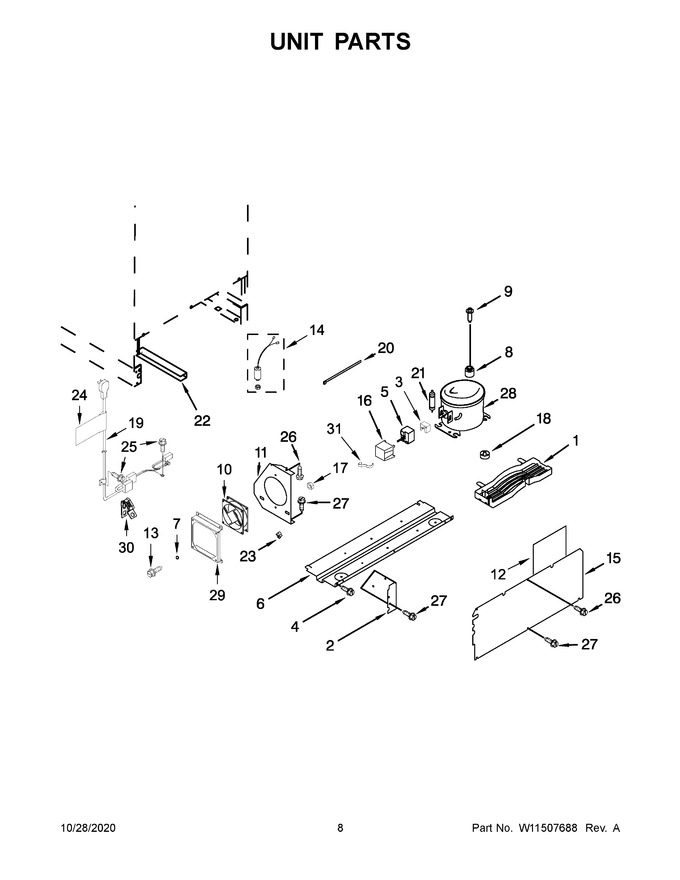

05 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11506518		Drain Tray				$ 102.83
2	W10239387		Bracket, Defrost Timer		Appelez-nous	-
3	W10780361		Overload Relay				$ 168.49
4	4344797		Screw		Appelez-nous	-
5	W10287848		Ptc Thermister				$ 173.32
6	W11422734		Cabinet Base Plate		Appelez-nous	-
7	W10204688		Fan Bushing		Appelez-nous	-
8	WP4344779		Grommet, Compressor   (Replaces: 4344779)				$ 8.47
9	W10772873		Bolt, Compressor   (Replaces: 4344780)		Appelez-nous	-
10	W10772882		Condenser Dc Motor				$ 347.43
11	W10204674		Air Baffle				$ 127.68
12	W10778963		Insulation, Rear Cover		Appelez-nous	-
13	W10772886		Screw		Appelez-nous	-
14	W10772895		Running Capacitor				$ 135.88
15	W10796445		Cover, Rear		Appelez-nous	-
16	W10772885		Cover, Relay		Appelez-nous	-
17	W10270493		Nut		Appelez-nous	-
18	W10163276		Trap, Drain				$ 90.13
19	WPW10204676		Cord, Power   (Replaces: W10204676)				$ 113.02
20	4344829		Tie, Cable		Appelez-nous	-
21	W10163273		Drier				$ 103.41
22	4344907		Trim, Edge		Appelez-nous	-
23	W10238022		Clip, Bushing		Appelez-nous	-
24	4344913		Warning Label		Appelez-nous	-
25	4344826		Screw				$ 16.70
26	4344825		Screw		Appelez-nous	-
27	4344832		Screw		Appelez-nous	-
28	W11765283		Compressor   (Replaces: W10780362)				$ 918.61
29	W11506521		Fan Cover, Condenser		Appelez-nous	-
30	W10281591		Clamp, Cord		Appelez-nous	-
31	W10778971		Clip, Relay Cover		Appelez-nous	-
NI	N/P		Refrigerant Charge 4.25 Oz (r-134a)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
